Altius
The Aerium Altius is a professional-grade carrier board designed to interface with the CubePilot Cube autopilot. Engineered for demanding unmanned applications, Altius supplies the hardware integration, power management, and connectivity infrastructure required to support the Cube’s redundant sensors, high-speed data buses, and real-time processing enabling autonomous control, precision navigation, and mission-critical reliability.

General
- Cube-Orange-class (Pixhawk standard compatible) autopilot with integrated IMUs and advanced I/O.
- Redundant sensor architecture for fault tolerance and safety.
- Ideal for multirotors, VTOLs, fixed-wings, and custom robotic systems.
Compatibility

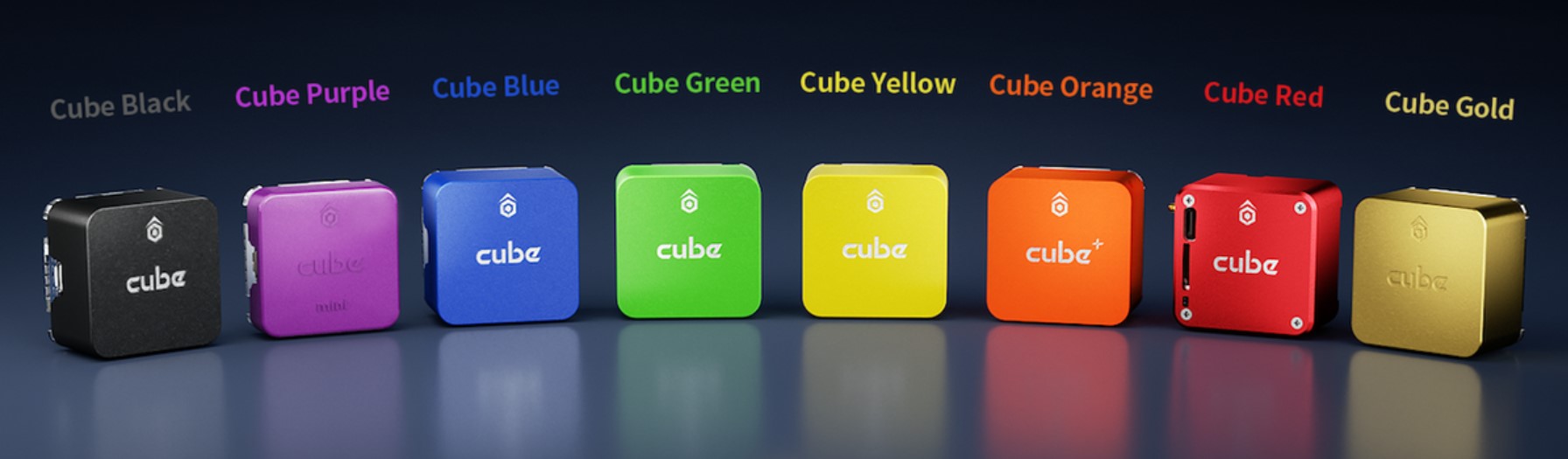

- All CubePilot products (CubeOrange, CubeOrange+, etc.)

Resources

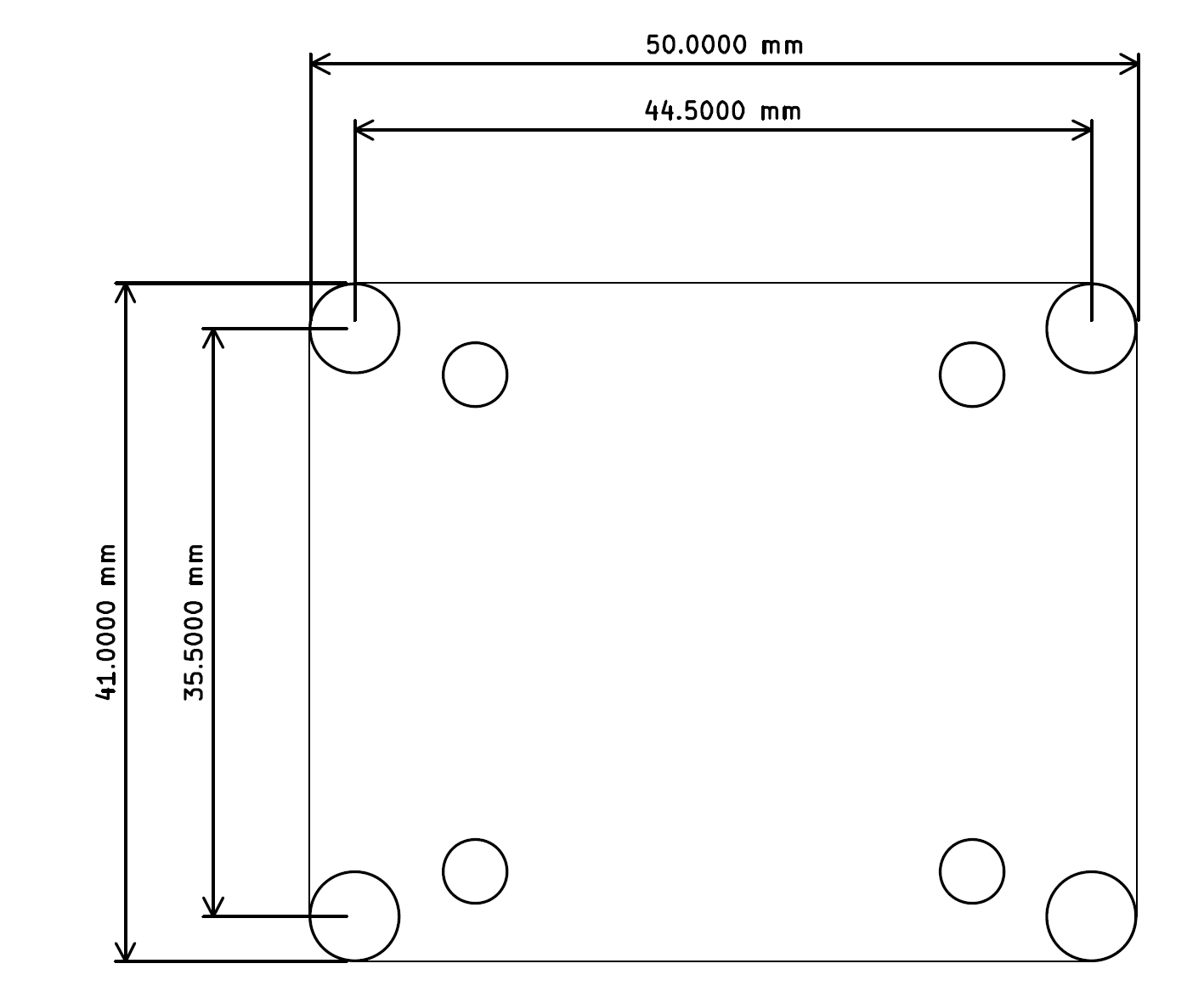

Mechanical
- Dimensions: 50 mm × 41 mm
- Mounting: Standard 35.5 mm × 44.5 mm pattern (M3)
- Weight: ~45 g (with carrier board)

Electrical
General
Specifications
- Input voltage (power ports): 4.1 – 5.7 V (recommended 5V)
- Redundant power inputs (Power1, Power2, USB)
- Logic level: 3.3 V

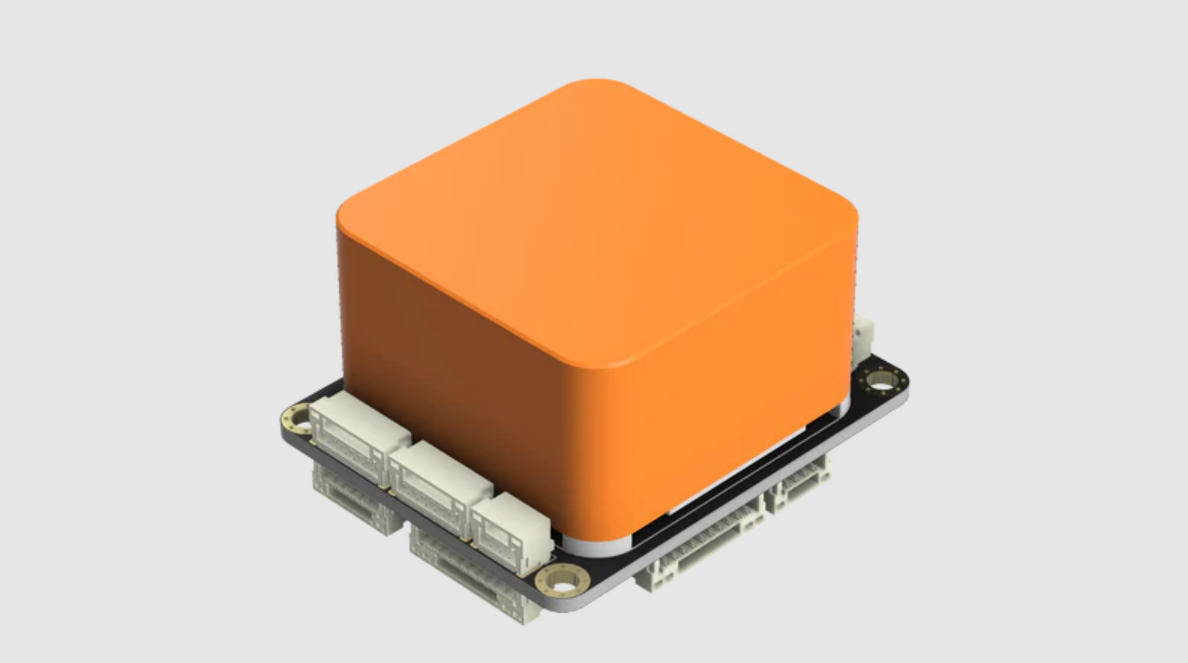

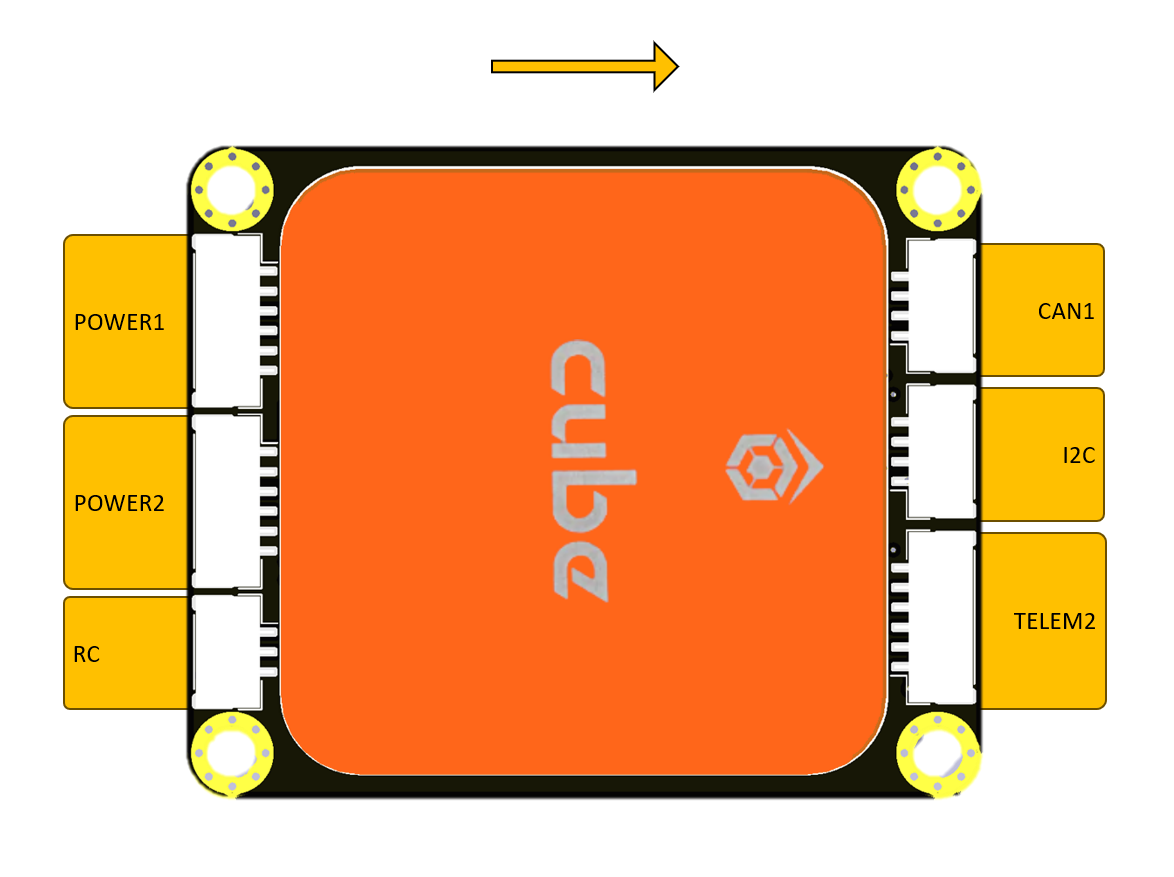

- Top View

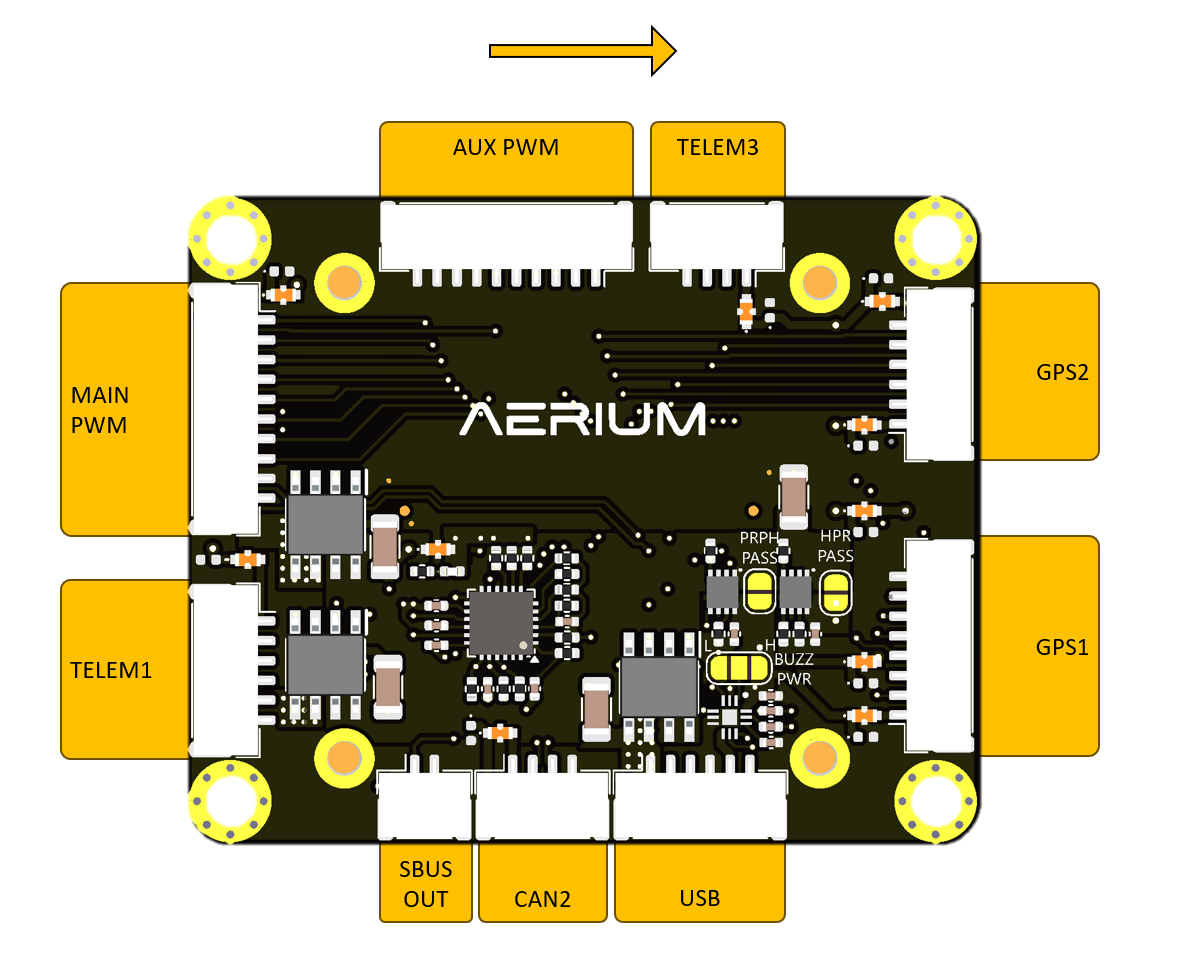

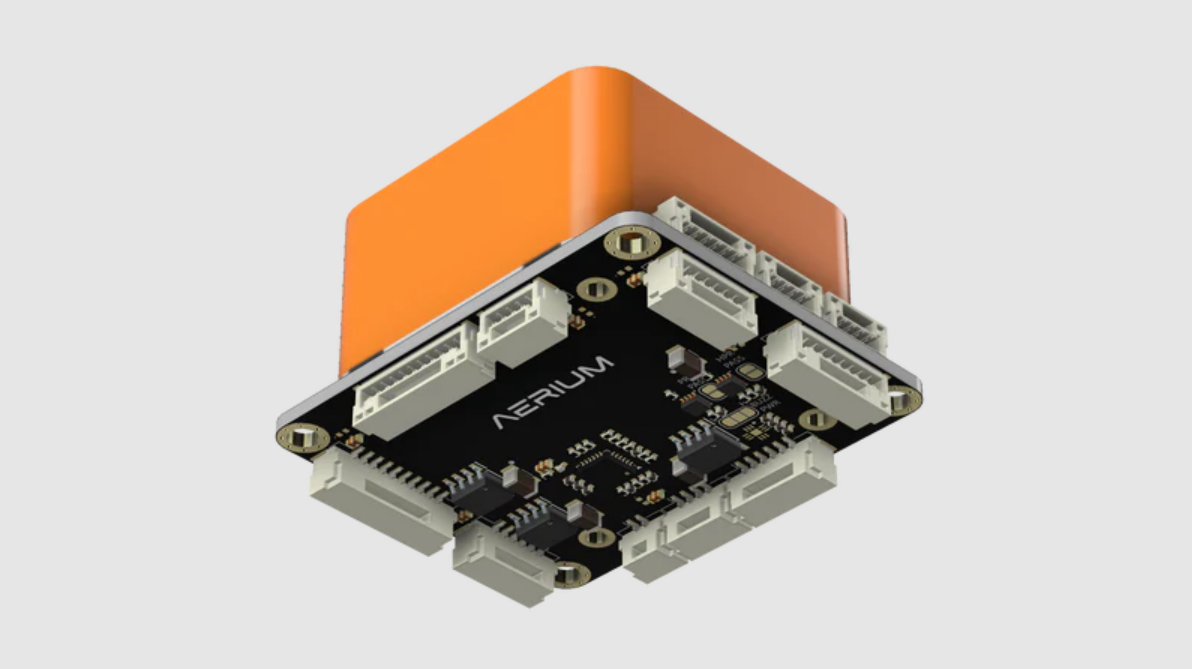

- Bottom View

Serial Port Mapping
| Port Name | CubePilot Pinout Name (80-pin DF17) | Hardware (UART#) | ArduPilot Serial Name | PX4 Serial Name |
|---|---|---|---|---|
| USB | USB | USB CDC | SERIAL0 | /dev/ttyACM0 |
| TELEM1 | SERIAL1 (TELEM1) | UART2 (USART2) | SERIAL1 | /dev/ttyS0 |
| TELEM2 | SERIAL2 (TELEM2) | UART3 (USART3) | SERIAL2 | /dev/ttyS1 |
| GPS1 | SERIAL3 (GPS1) | UART4 | SERIAL3 | /dev/ttyS2 |
| GPS2 | SERIAL4 (GPS2) | UART8 | SERIAL4 | /dev/ttyS5 |
| TELEM3 / CONSOLE / ADSB | SERIAL5 (TELEM3/CONSOLE/ADSB) | UART7 | SERIAL5 | /dev/ttyS4 |
Electrical pinout
Power1 Connector
-
Connector Definition
Type Part Number Part Name Board Connector SM06B-GHS-TB JST-GH Cable Connector GHR-06V-S JST-GH Pin Name Description 1 VDD_5V Power input (4.1 – 5.7 V) 2 VDD_5V Power input (4.1 – 5.7 V) 3 CURRENT Current sense input 4 VOLTAGE Voltage sense input 5 GND Ground 6 GND Ground
Power2 Connector
-
Connector Definition
Type Part Number Part Name Board Connector SM06B-GHS-TB JST-GH Cable Connector GHR-06V-S JST-GH Pin Name Description 1 VDD_5V Power input (4.1 – 5.7 V) 2 VDD_5V Power input (4.1 – 5.7 V) 3 CURRENT Current sense input 4 VOLTAGE Voltage sense input 5 GND Ground 6 GND Ground
GPS1 Connector

-
Connector Definition
Type Part Number Part Name Board Connector SM08B-GHS-TB JST-GH Cable Connector GHR-08V-S JST-GH Pin Name Description 1 VCC Power Output (5 V) 2 TX UART TX (3.3 V logic) 3 RX UART RX (3.3 V logic) 4 SCL I²C clock (I2C_1) 5 SDA I²C data (I2C_1) 6 BTN Safety Switch Button 7 LED Safety Switch LED 8 GND Ground
GPS2 Connector
-
Connector Definition
Type Part Number Part Name Board Connector SM06B-GHS-TB JST-GH Cable Connector GHR-06V-S JST-GH Pin Name Description 1 VCC Power Output (5 V) 2 TX UART TX (3.3 V logic) 3 RX UART RX (3.3 V logic) 4 SCL I²C clock (I2C_2) 5 SDA I²C data (I2C_2) 6 GND Ground
I2C Connector
-
Connector Definition
Type Part Number Part Name Board Connector SM04B-GHS-TB JST-GH Cable Connector GHR-04V-S JST-GH Pin Name Description 1 VCC Power Output (5 V) 2 SCL I²C clock (I2C_2) 3 SDA I²C data (I2C_2) 4 GND Ground
TELEM1 Connector
-
Connector Definition
Type Part Number Part Name Board Connector SM06B-GHS-TB JST-GH Cable Connector GHR-06V-S JST-GH Pin Name Description 1 VCC Power Output (5 V) 2 TX Telemetry TX (3.3 V logic) 3 RX Telemetry RX (3.3 V logic) 4 CTS Clear to Send (3.3 V logic) 5 RTS Ready to Send (3.3 V logic) 6 GND Ground
TELEM2 Connector
-
Connector Definition
Type Part Number Part Name Board Connector SM06B-GHS-TB JST-GH Cable Connector GHR-06V-S JST-GH Pin Name Description 1 VCC Power Output (5 V) 2 TX Telemetry TX (3.3 V logic) 3 RX Telemetry RX (3.3 V logic) 4 CTS Clear to Send (3.3 V logic) 5 RTS Ready to Send (3.3 V logic) 6 GND Ground
TELEM3 Connector
-
Connector Definition
Type Part Number Part Name Board Connector SM04B-GHS-TB JST-GH Cable Connector GHR-04V-S JST-GH Pin Name Description 1 VCC Power Output (5 V) 2 TX UART TX (3.3 V logic) 3 RX UART RX (3.3 V logic) 4 GND Ground
CAN1 Connector
-
Connector Definition
Type Part Number Part Name Board Connector SM04B-GHS-TB JST-GH Cable Connector GHR-04V-S JST-GH Pin Name Description 1 VCC Power Output (5 V) 2 CAN_H CAN high signal 3 CAN_L CAN low signal 4 GND Ground
CAN2 Connector
-
Connector Definition
Type Part Number Part Name Board Connector SM04B-GHS-TB JST-GH Cable Connector GHR-04V-S JST-GH Pin Name Description 1 VCC Power Output (5 V) 2 CAN_H CAN high signal 3 CAN_L CAN low signal 4 GND Ground
USB Connector
-
Connector Definition
Pin Name Description 1 VBUS 5V power input 2 D+ USB data plus 3 D- USB data minus 4 GND Ground 5 BUZ Buzzer output 6 LED LED
Main Motor/Servo

-
Connector Definition
Type Part Number Part Name Board Connector SM10B-GHS-TBT JST-GH Cable Connector GHR-10V-S JST-GH -
Connector Pinout
Pin Name Description 1 SERVO1 Motor/Servo signal 2 SERVO2 Motor/Servo signal 3 SERVO3 Motor/Servo signal 4 SERVO4 Motor/Servo signal 5 SERVO5 Motor/Servo signal 6 SERVO6 Motor/Servo signal 7 SERVO7 Motor/Servo signal 8 SERVO8 Motor/Servo signal 9 GND Ground 10 GND Ground
Aux Motor/Servo

-
Connector Definition
Type Part Number Part Name Board Connector SM10B-GHS-TBT JST-GH Cable Connector GHR-10V-S JST-GH -
Connector Pinout
Pin Name Description 1 SERVO1 Motor/Servo signal 2 SERVO2 Motor/Servo signal 3 SERVO3 Motor/Servo signal 4 SERVO4 Motor/Servo signal 5 SERVO5 Motor/Servo signal 6 SERVO6 Motor/Servo signal 7 GND Ground 8 GND Ground 9 GND Ground 10 GND Ground
RC (in)
-
Connector Definition
Type Part Number Part Name Board Connector SM3B-GHS-TBT JST-GH Cable Connector GHR-3V-S JST-GH -
Connector Pinout
Pin Name Description 1 VCC Power Output (5 V) 2 Signal RC Signal 5 GND Ground
SBUS Out

-
Connector Definition
Type Part Number Part Name Board Connector SM2B-GHS-TBT JST-GH Cable Connector GHR-2V-S JST-GH -
Connector Pinout

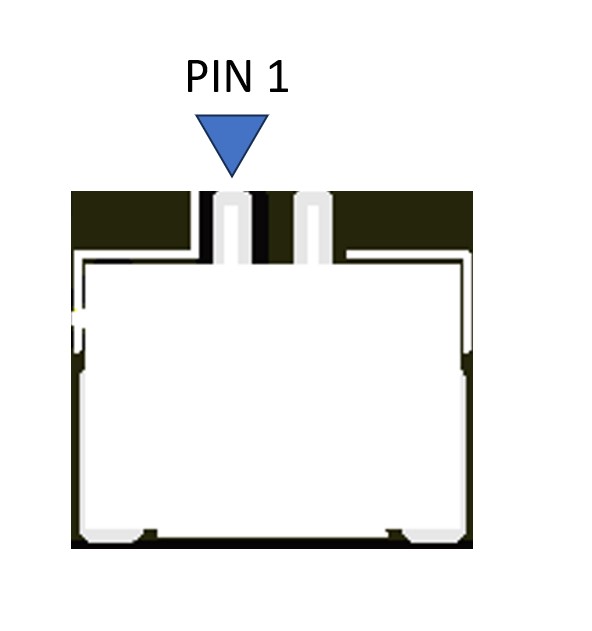

Pin Name Description 1 SBUS OUT SBUS output signal 2 GND Ground
Integration and Bring-up
Refer to CubePilot Documentation for detailed information.
