Atlas

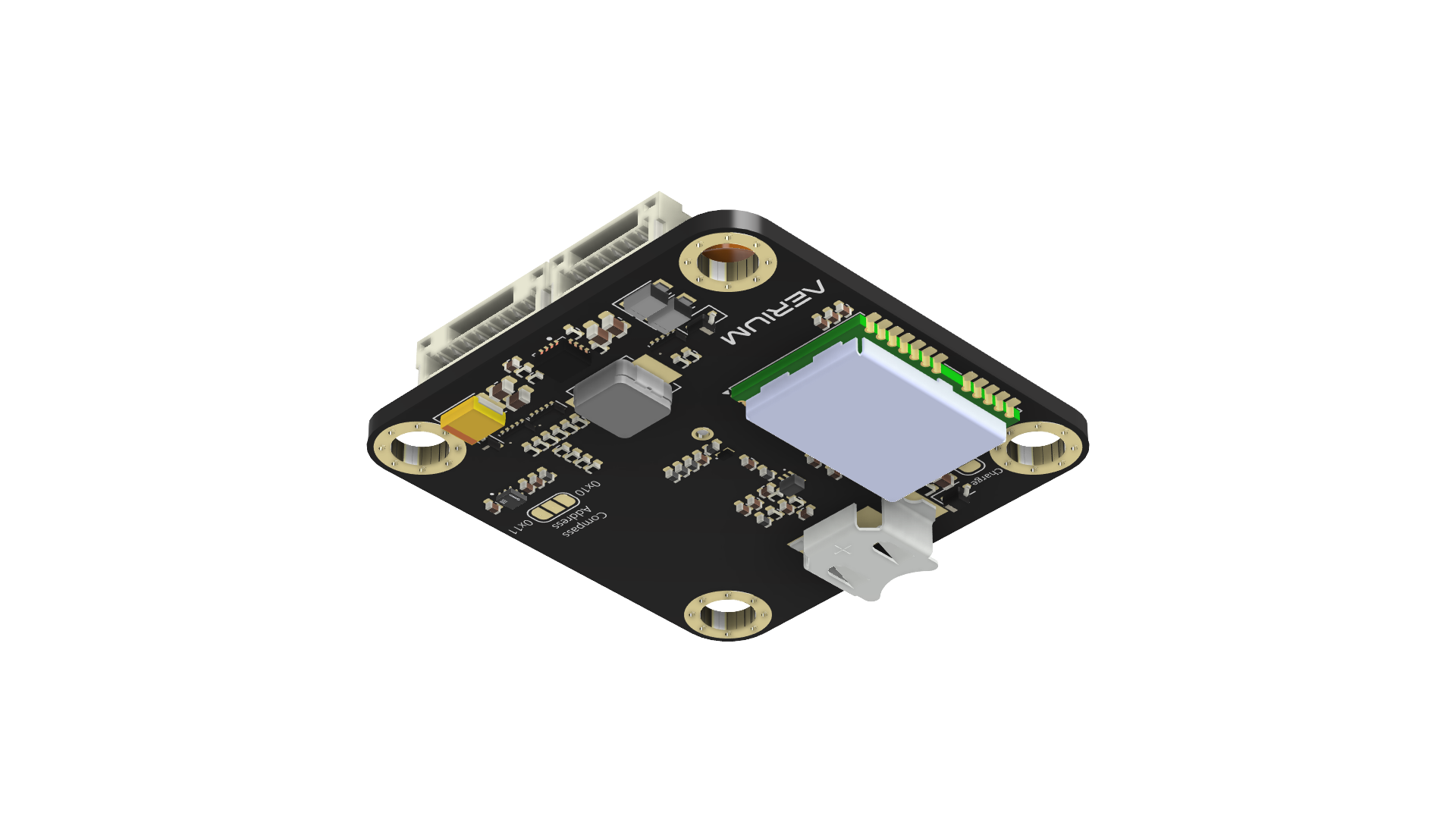

The Aerium Atlas is a high-precision, multi-band RTK GNSS receiver designed for unmanned applications requiring centimeter-level accuracy and robust multi-constellation support. It features the u-blox NEO-F9P chipset and a built-in active ceramic antenna, offering professional-grade positioning performance in a compact form factor.

General

• RTK-capable, high-precision GNSS receiver with active antenna.
• Integrated SAW and LNA filters for signal reliability.
• Compact design ideal for space-constrained unmanned systems.

Compatibility

• GNSS Receiver: u-blox NEO-F9P
• Compatible with:
  • Pixhawk and other Ardupilot/PX4-based autopilots
  • Connects via standard JST-GH interface
  • Supports RTK correction via UART or I²C
• Multi-constellation GNSS support:
  • GPS, Galileo, GLONASS, BeiDou

Resources

• 3D CAD Model

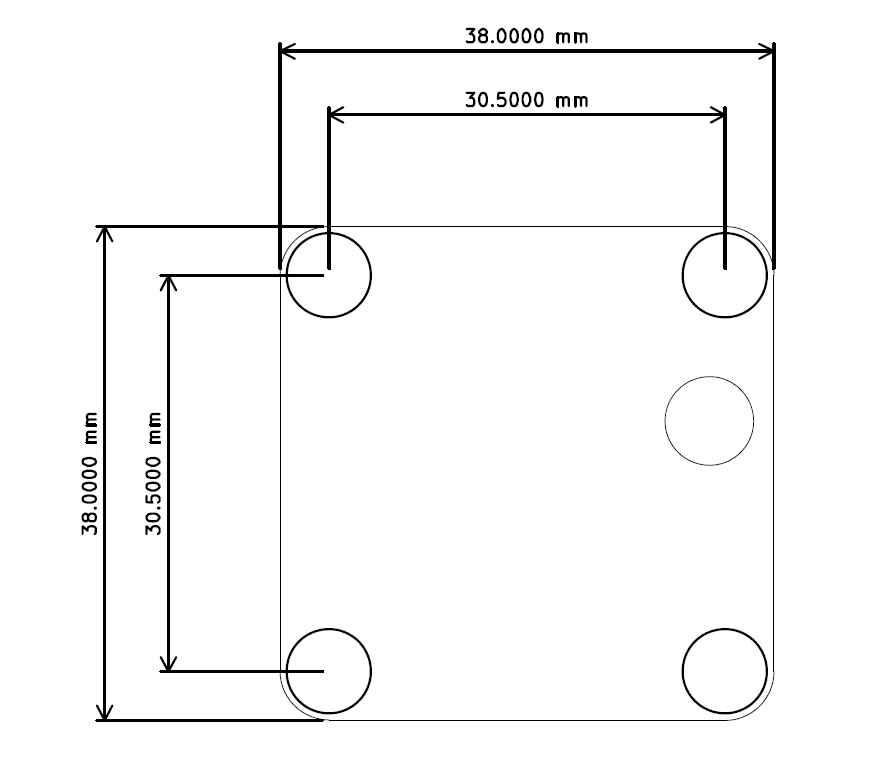

Mechanical

• Dimensions: 38 mm × 38 mm
• Mounting holes: M3, spaced 30.5 mm × 30.5 mm
• Weight: ~12 g

Electrical

General

• Input voltage: 3.3 – 12 V
• Logic level: 3.3 V
• PPS (Pulse Per Second) output supported
• Integrated battery for fast TTFF (Time To First Fix)

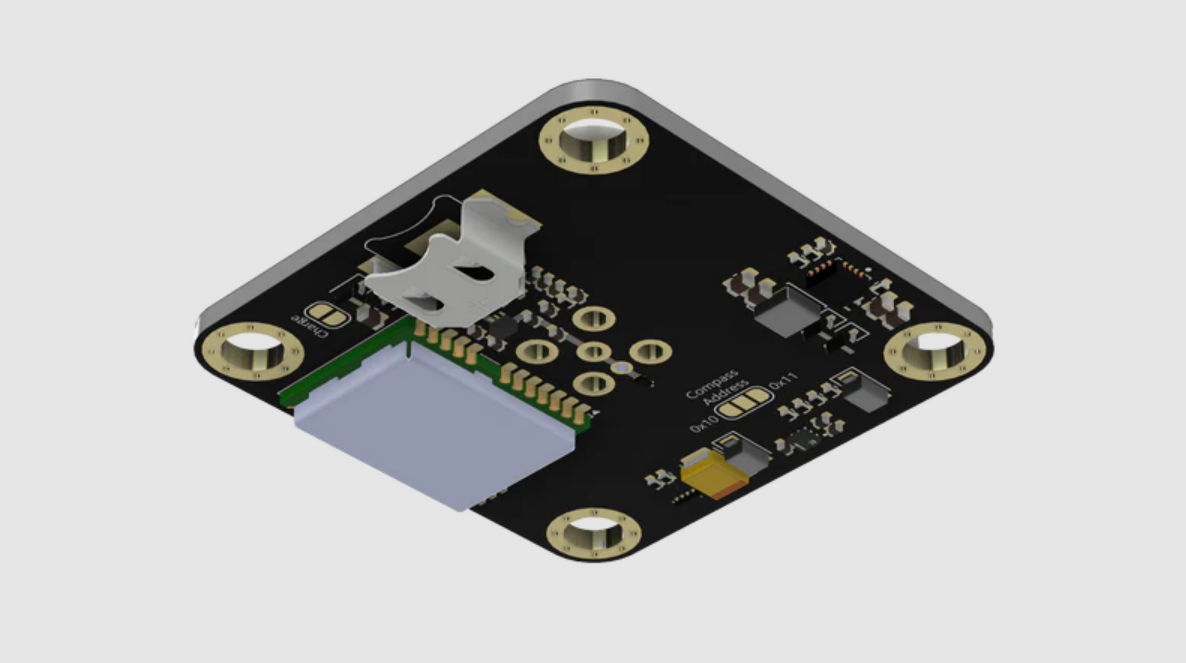

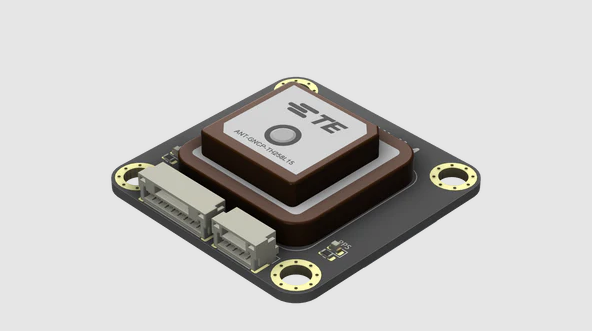

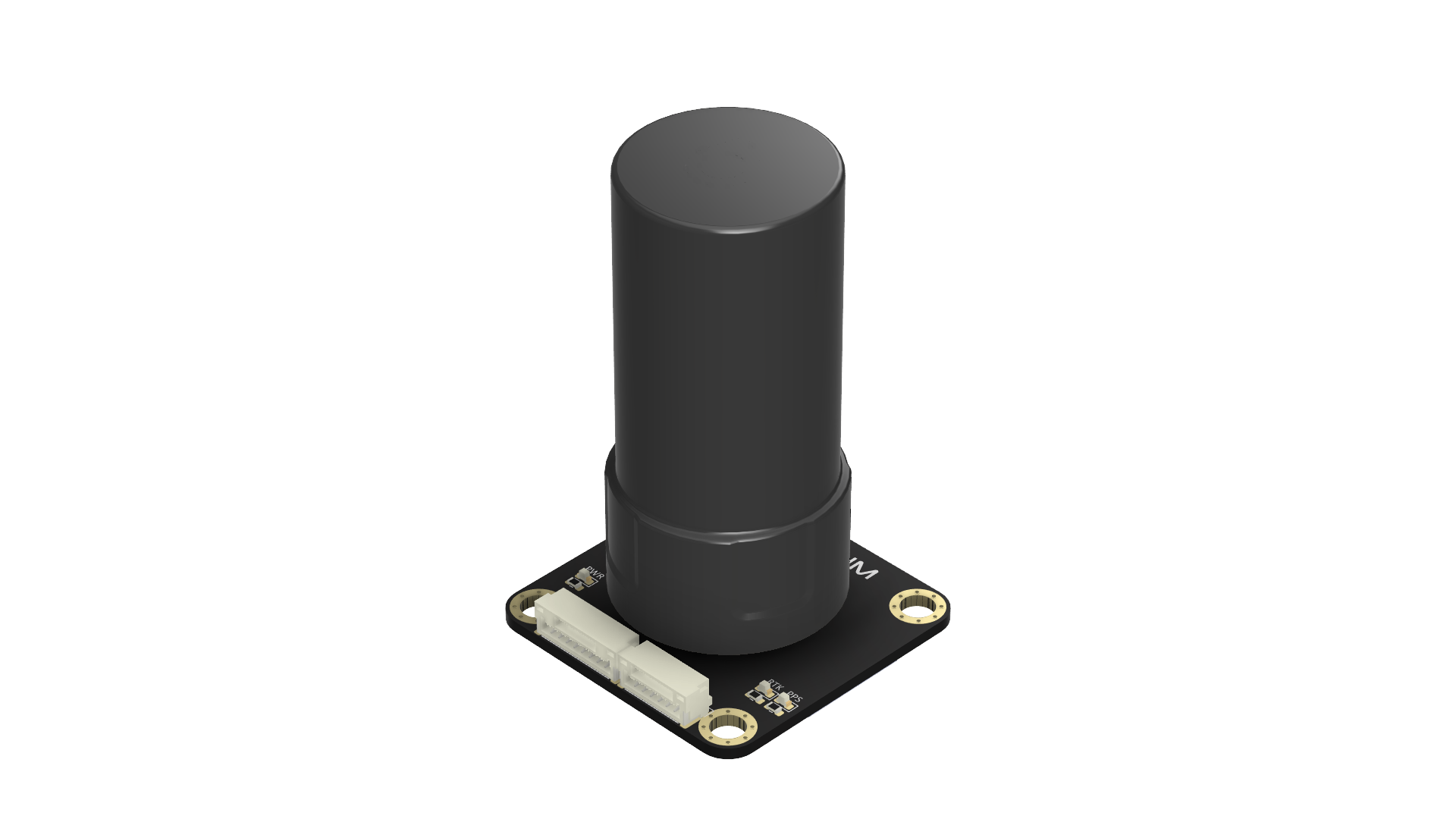

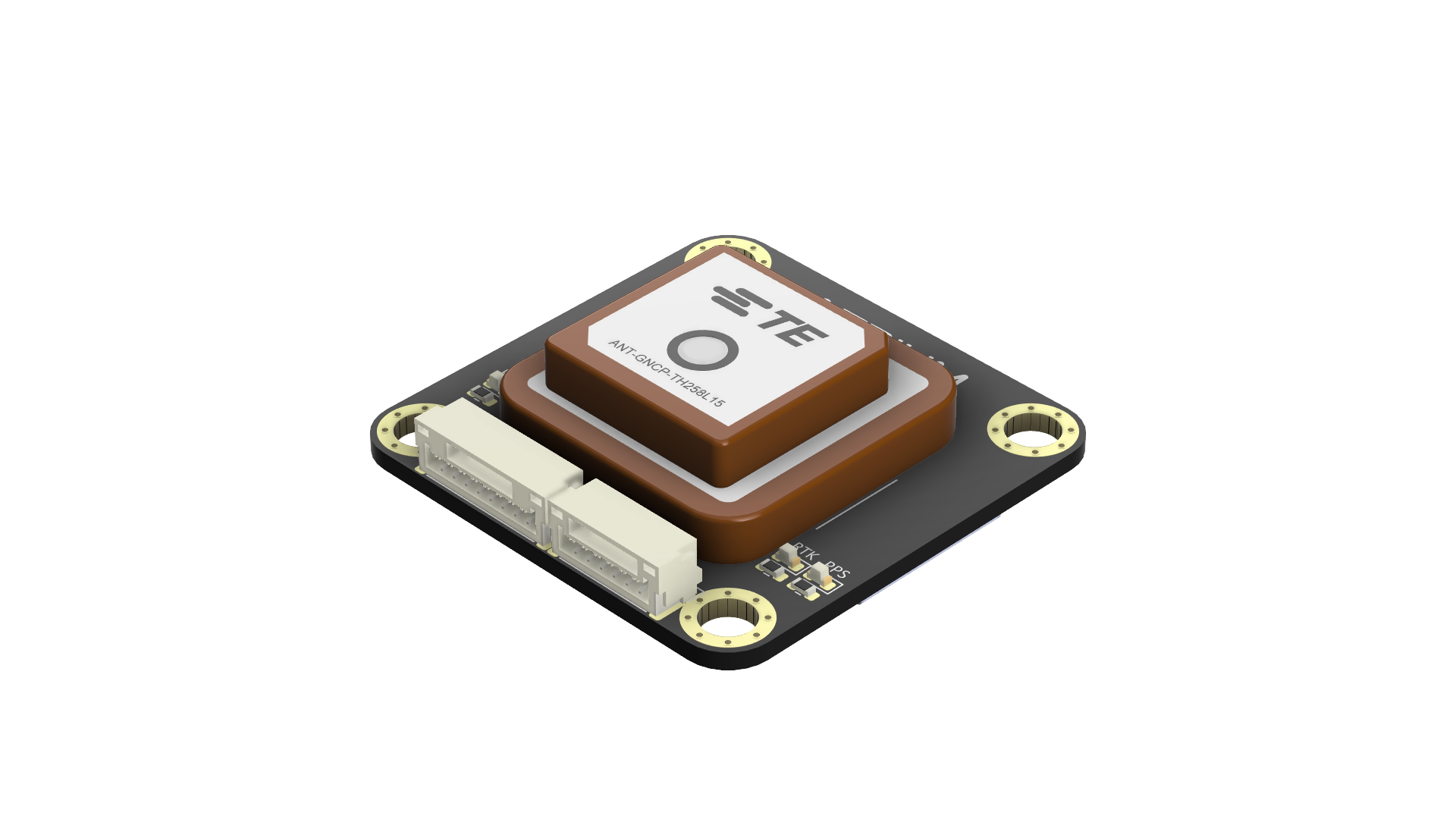

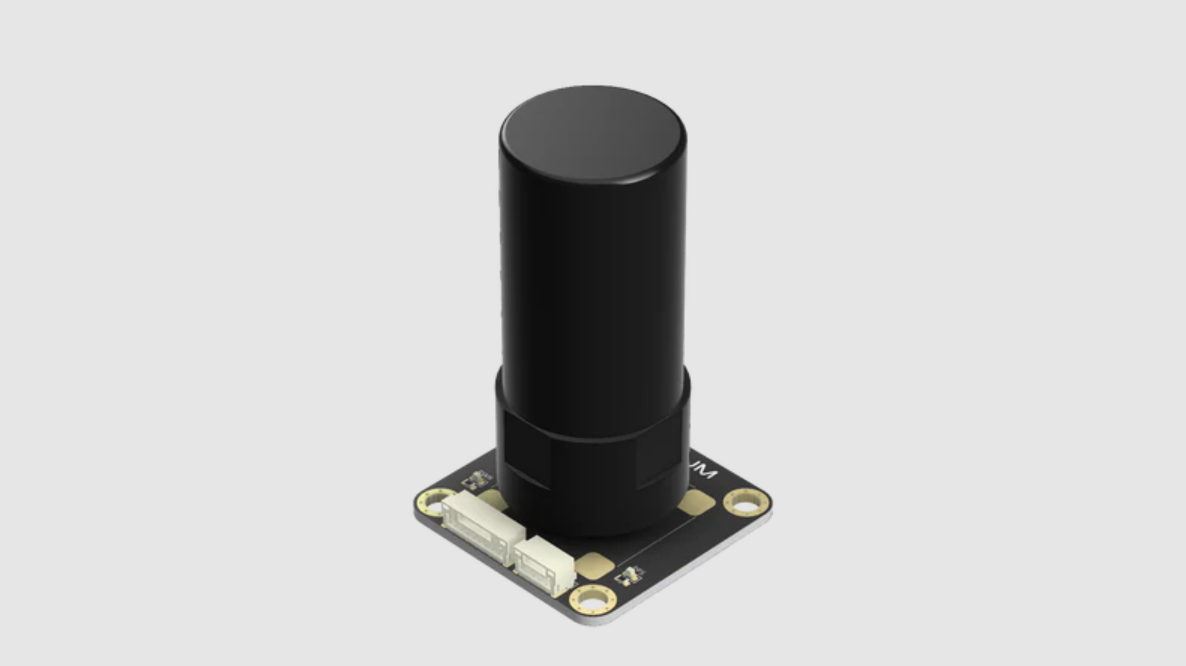

• Top View

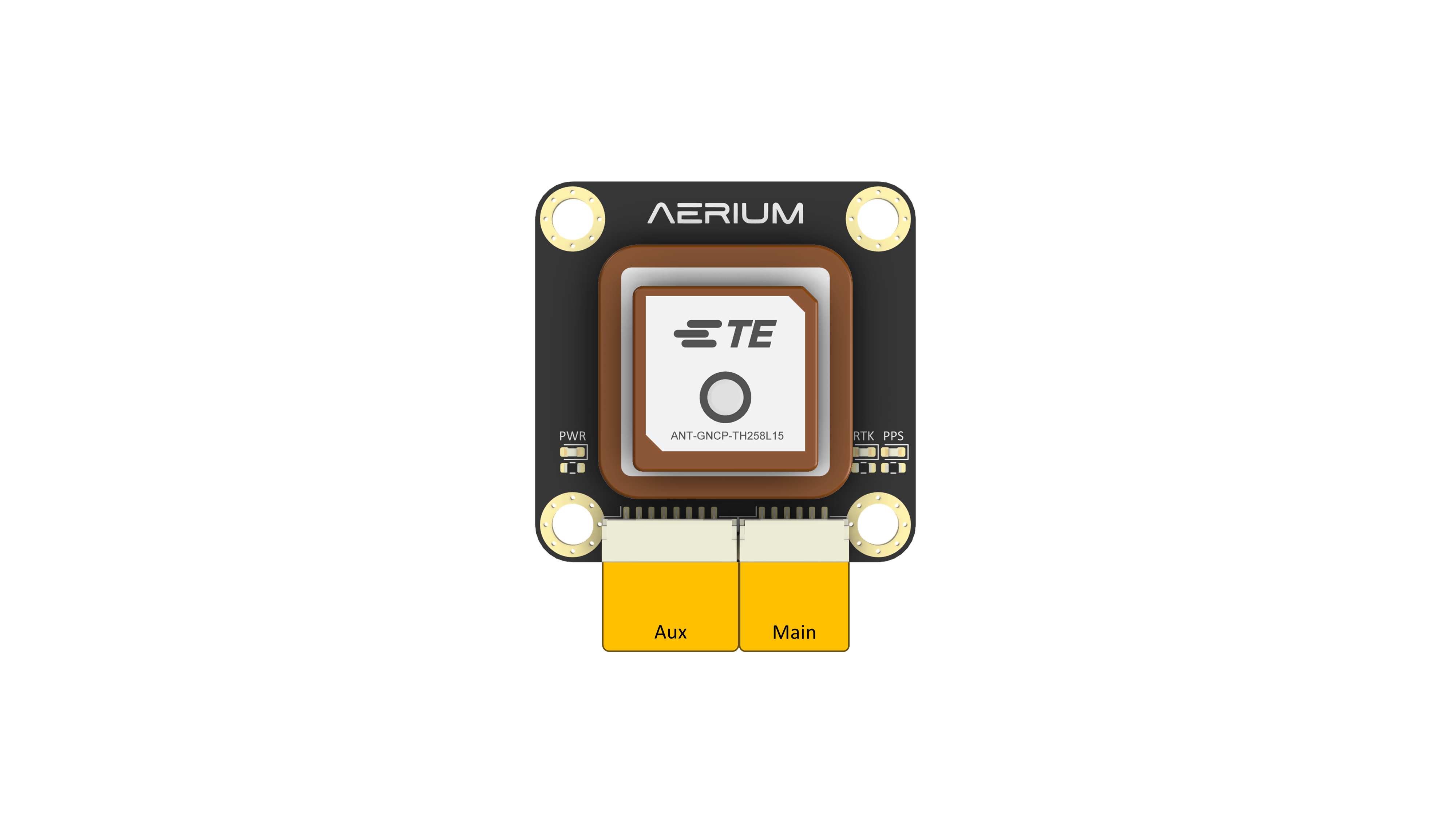

Pinout

Main Connector

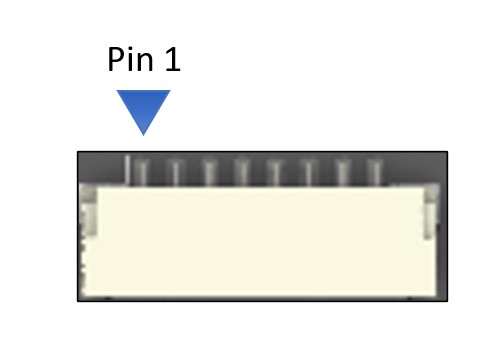

• Connector Definition

  Type	Part Number	Part Name
  Board Connector	SM06B-GHS-TB	JST-GH
  Cable Connector	GHR-06V-S	JST-GH

  Pin	Name	Description	Voltage
  1	VCC	Power Input	3.3V - 12V
  2	RX	UART receive	3.3 V
  3	TX	UART transmit	3.3 V
  4	SCL	I²C clock	3.3 V
  5	SDA	I²C data	3.3 V
  6	GND	Ground	GND

Aux Connector

• Connector Definition

  Type	Part Number	Part Name
  Board Connector	SM08B-GHS-TB	JST-GH
  Cable Connector	GHR-08V-S	JST-GH

  Pin	Name	Description	Voltage
  1	VBUS	Power Input	3.3V - 12V
  2	D-	USB data minus	0V - 3.3V
  3	D+	USB data plus	0V - 3.3V
  4	RX2	UART2 receive	3.3 V
  5	TX2	UART2 transmit	3.3 V
  6	PPS	Pulse-per-second output	3.3 V
  7	INT	Interrupt / Data Ready	3.3 V
  8	GND	Ground	GND

Software

Configuration Steps

• Default protocol: UBX over UART or USB
• Configurable using u-blox u-center software
• Supports:
  • RTK positioning (Base/Rover mode)
  • GNSS constellation selection
  • NMEA/UBX message configuration
  • Output rate and dynamic model tuning
  • Spoofing/jamming detection

Integration Steps

1. Connect VCC (3.3 – 12 V) and GND to your power source.
2. Connect UART or I²C lines to your autopilot or telemetry system.
3. For RTK: connect to RTK correction source via UART or telemetry radio.
4. Mount securely to the frame using M3 bolts and spacers.
5. Configure using u-center or your autopilot’s GPS driver.
