Orion

The Aerium Orion is a dual-band GNSS module, powered by the u-blox NEO-F10N, delivering L1/L5 precision, faster satellite acquisition, and robust performance in even the most challenging environments. Paired with the Isentek IST8310 magnetometer, it provides accurate heading and orientation data to complement its positioning capabilities. Fully compatible with Pixhawk autopilots, Aerium Orion is engineered for unmanned applications where compact design, top-tier performance, and absolute reliability are essential.

General

• Dual-band GNSS with L1 + L5 support for higher accuracy and faster acquisition
• Integrated SAW and LNA filters for improved signal reliability
• Compact 25 × 25 mm design, ideal for unmanned systems

Compatibility

• GNSS Receiver: u-blox NEO-F10N
• Magnetometer: Isentek IST8310
• Fully compatible with:
  • Pixhawk and other Ardupilot/PX4-based autopilots
  • Standard JST-SH interface for easy integration

Mechanical

• Dimensions: 25 mm × 25 mm
• Weight: ~22 g

Electrical

General

• Input voltage: 3.3 – 12 V
• Logic level: 3.3 V
• PPS (Pulse Per Second) output supported

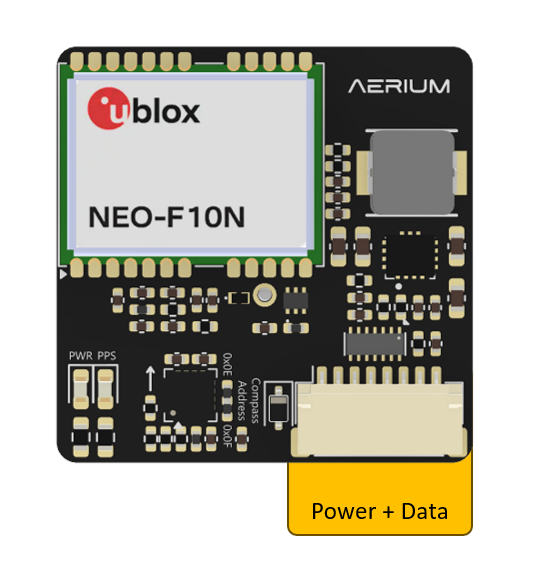

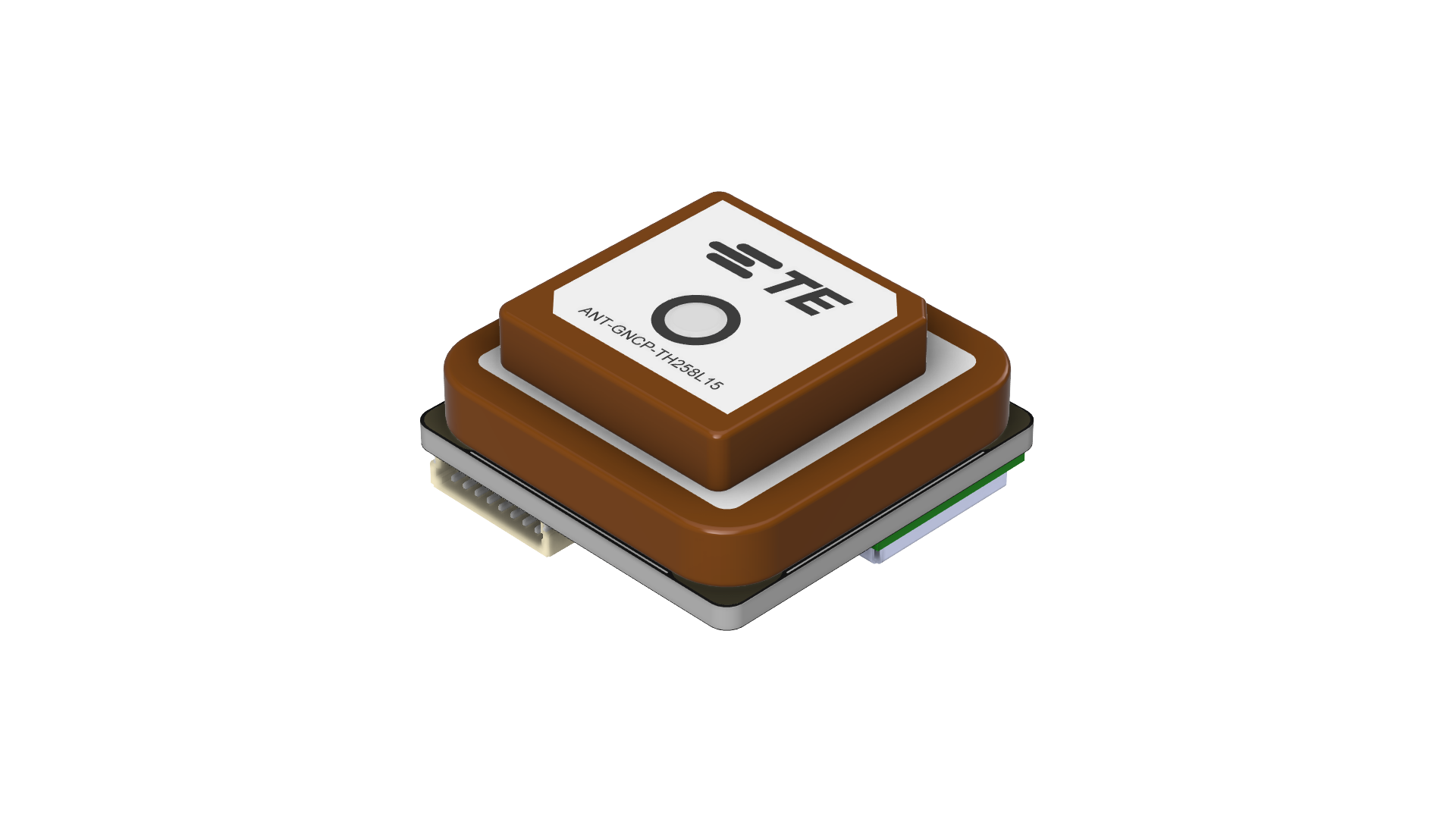

• Top View

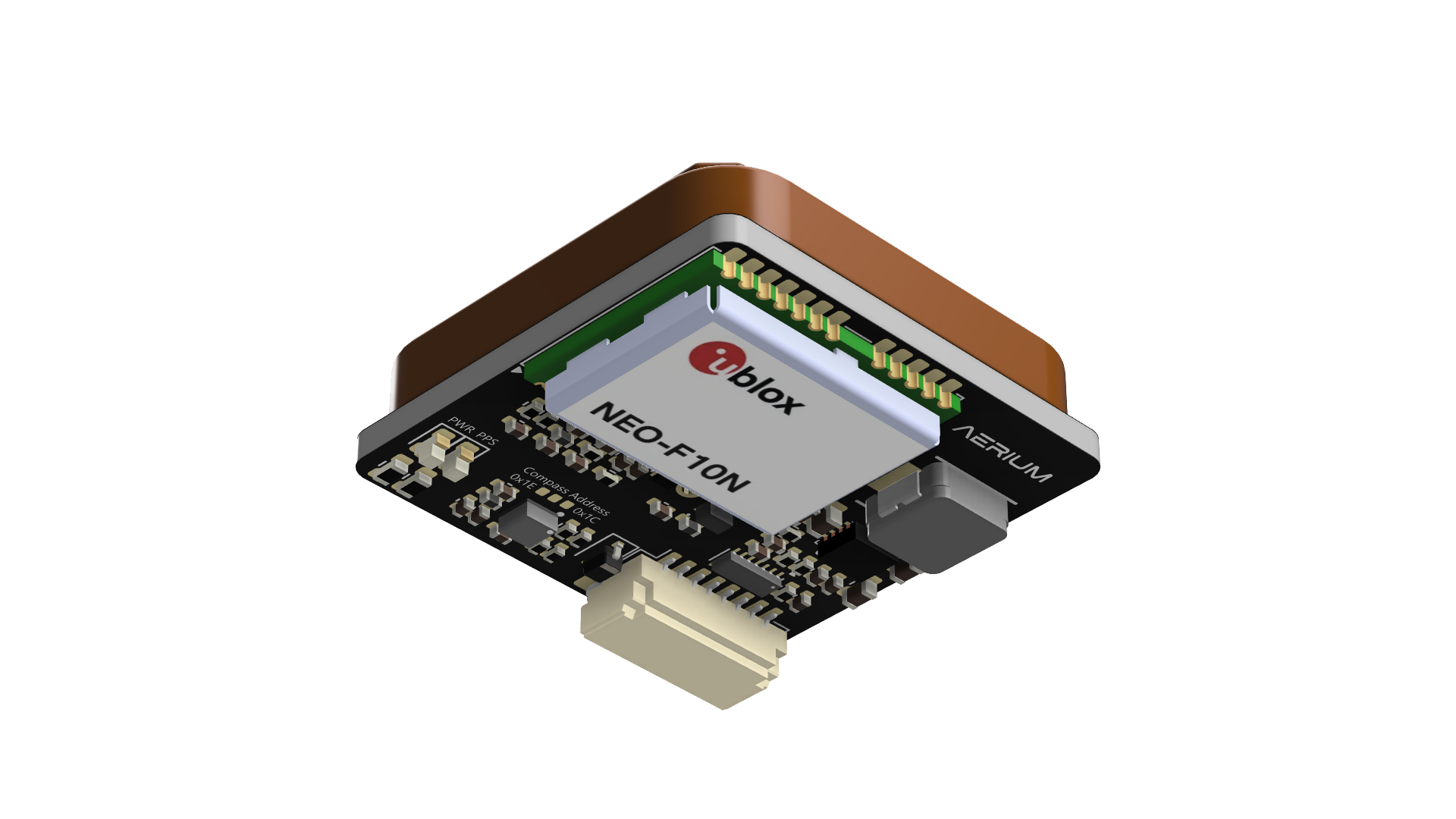

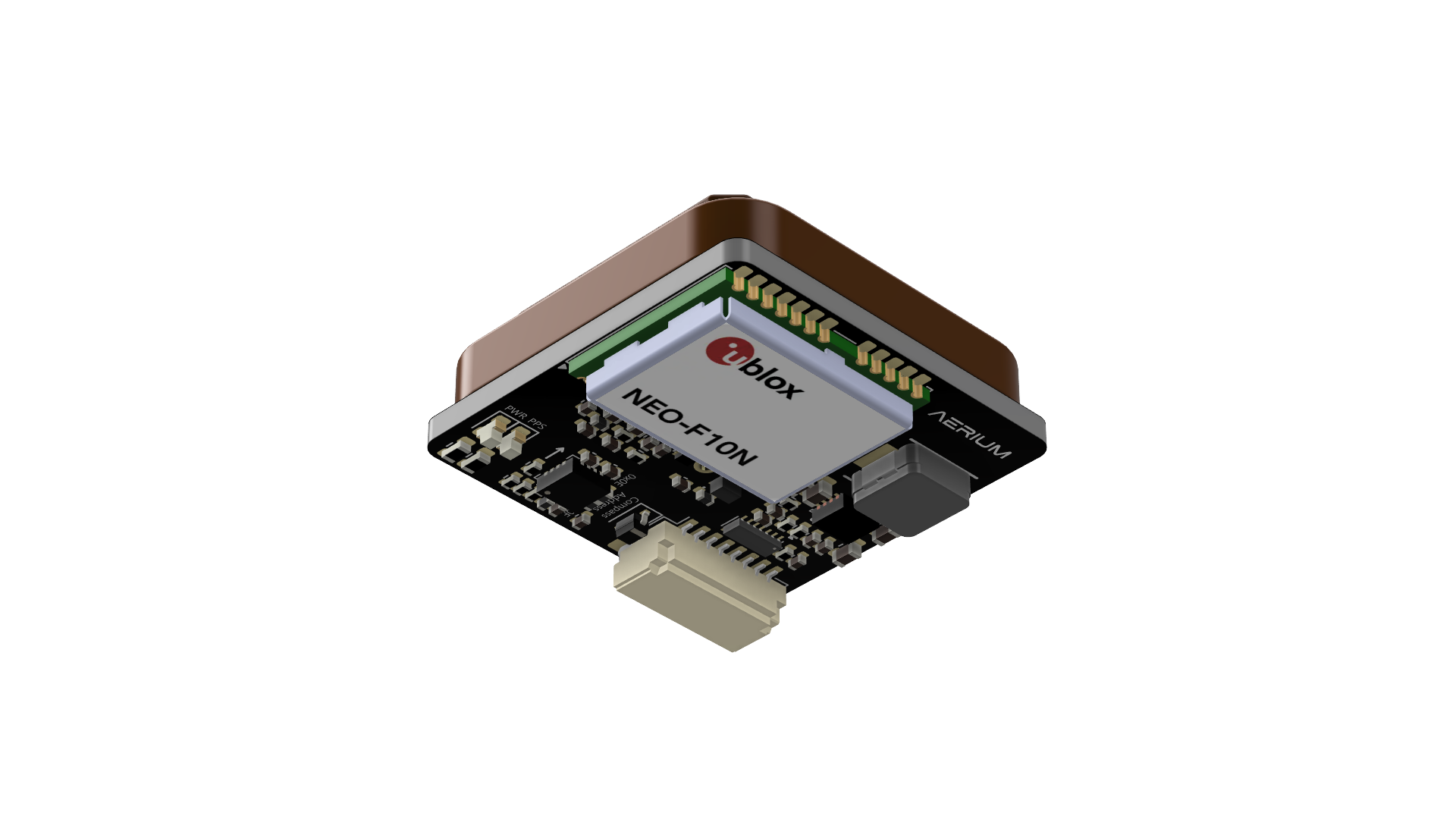

Pinout

Main Connector - Power + Data

• Connector Definition

  Type	Part Number	Series
  Board Connector	SM08B-SRSS-TB	JST-SH
  Cable Connector	SHR-08V-S-B	JST-SH

  Pin	Name	Description
  1	VCC	5V Power Input
  2	RX	UART receive (3.3 V logic)
  3	TX	UART transmit (3.3 V logic)
  4	SCL	I²C clock (3.3 V logic)
  5	SDA	I²C data (3.3 V logic)
  6	PPS	Pulse-per-second output (3.3 V logic)
  7	INT	Interrupt / Data Ready (3.3 V logic)
  8	GND	Ground
