Portus

The Portus is an M.2 Key A/E expansion card that extends connectivity. It features a LAN7430 controller for a Gigabit Ethernet port and a USB2514IB hub that provides two standard USB ports. The remaining two USB lines are routed through FT234 bridges, delivering dual UART ports.

General

• Built around the Microchip USB2514B USB 2.0 hub controller.
• Provides two downstream USB 2.0 ports over Hirose DF52 connectors.
• Two additional downstream ports are routed through FT234 bridges to deliver dual native UART ports.
• Integrated LAN7430 controller adds a dedicated Gigabit Ethernet port.
• M.2 Key A/E form factor ensures compatibility with a wide range of embedded and compute platforms.
• Lightweight and compact — ideal for space- and power-constrained systems.

Mechanical

• Weight: ~5 [g]
• Dimensions: 22 mm × 42 mm (standard M.2 2242 Key A/E)
• Mounting: M2 screw mount

Electrical

General

• Interface: M.2 Key A/E (USB 2.0)
• Connectors:
  • 1× Ethernet ports
  • 1× USB 2.0 ports
  • 2× UART ports
• USB Standard: USB 2.0 (480 Mbps)

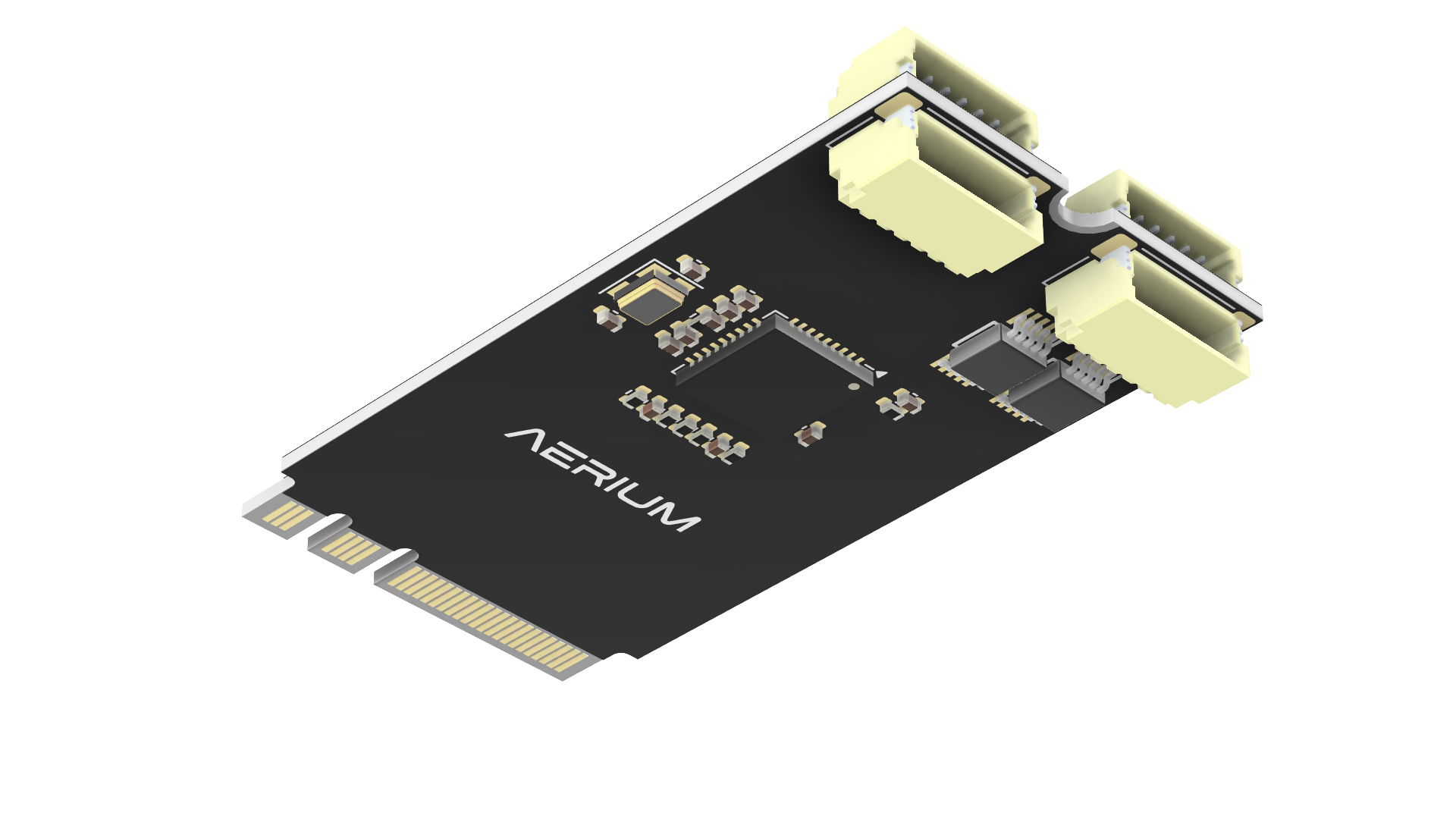

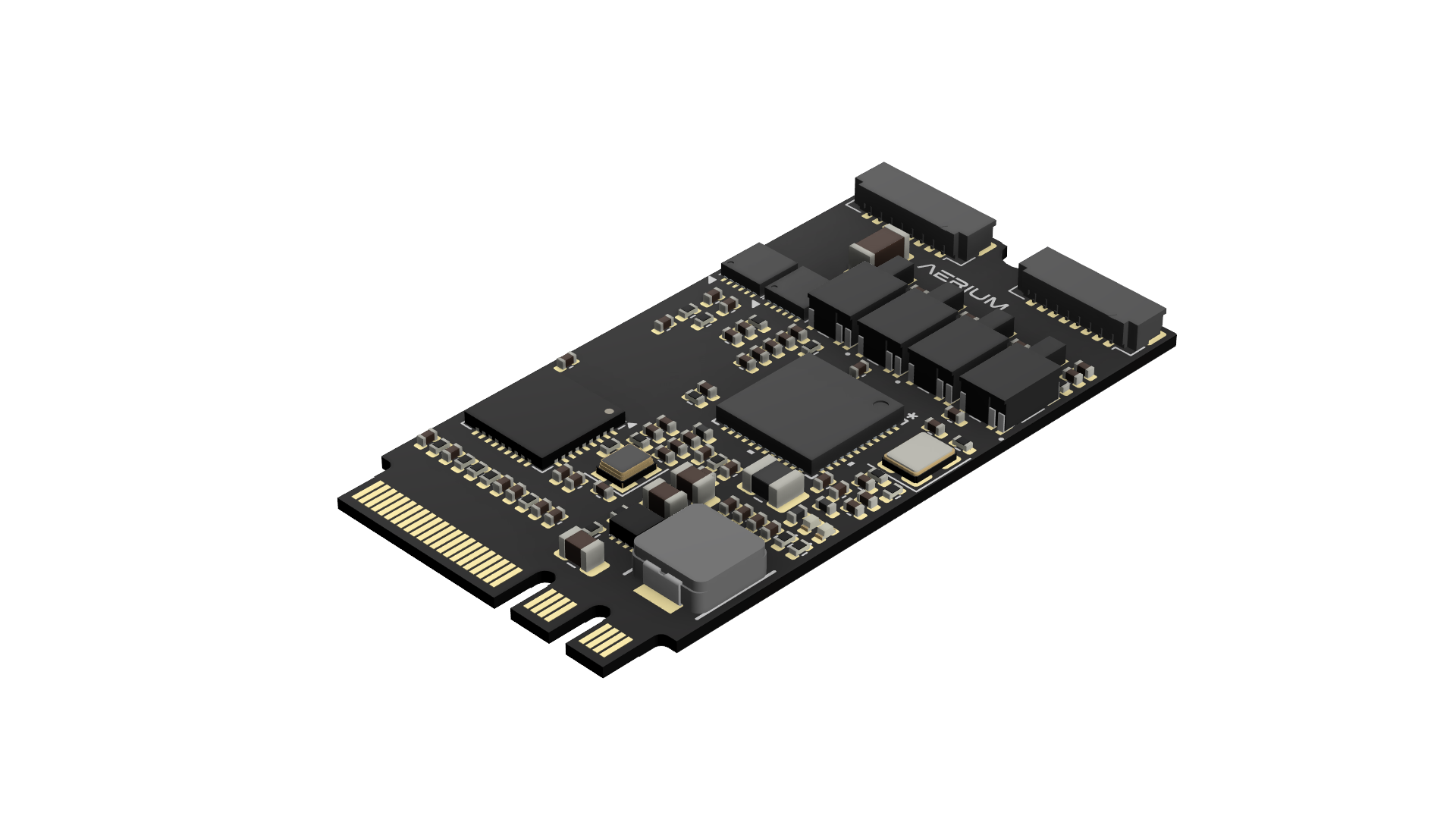

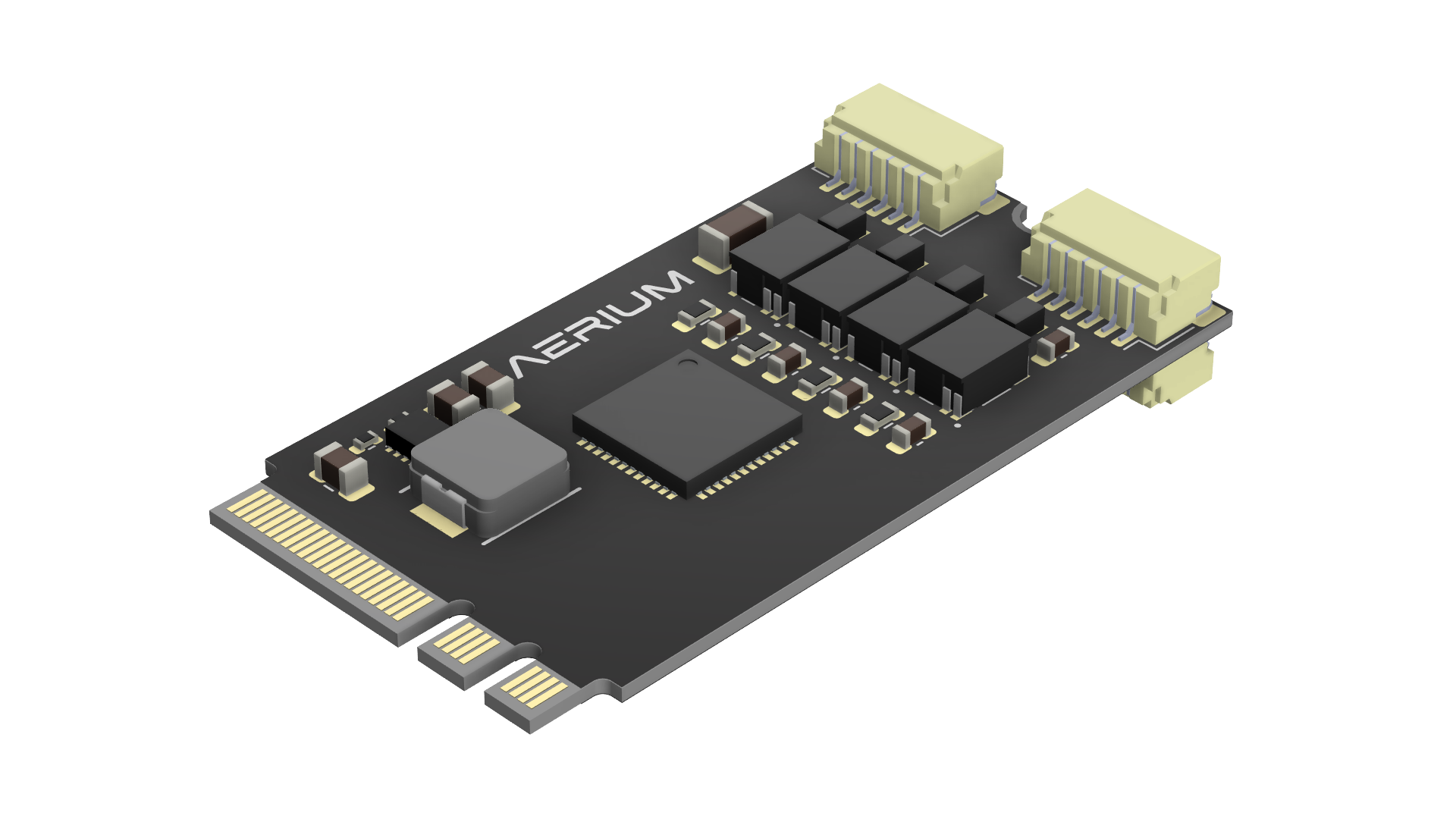

• Top View

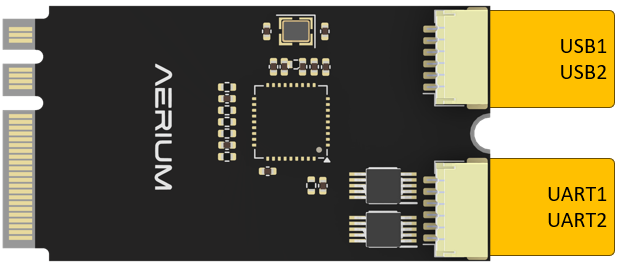

Electrical Pinout

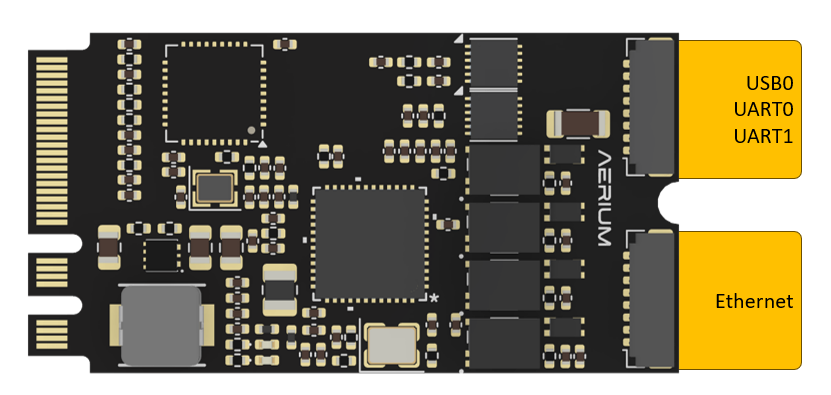

USB0 + UART0 + UART1

• Connector Definition

  Type	Part Number	Part Name
  Board Connector	DF52-8S-0.8H(21)	Hirose DF52
  Cable Connector	DF52-8P-0.8C(21)	Hirose DF52

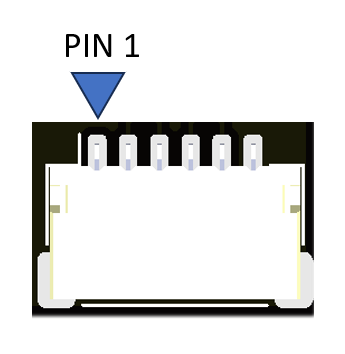

• Connector Pinout

  Pin	Name	Description
  1	VCC	5 V output
  2	D0N	USB Data − (port 0)
  3	D0P	USB Data + (port 0)
  4	TX0	UART TX (port 0)
  5	RX0	UART RX (port 0)
  6	TX1	UART TX (port 1)
  7	RX1	UART RX (port 1)
  8	GND	Ground

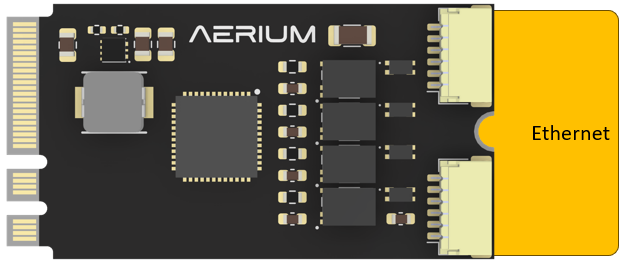

Ethernet

• Connector Definition

  Type	Part Number	Part Name
  Board Connector	DF52-8S-0.8H(21)	Hirose DF52
  Cable Connector	DF52-8P-0.8C(21)	Hirose DF52

• Connector1 Pinout

  Pin	Name	Description
  1	D0N	ETH_MDI0_P
  2	D0P	ETH_MDI0_N
  3	D1N	ETH_MDI1_P
  4	D1P	ETH_MDI1_N
  5	D2N	ETH_MDI2_P
  6	D2P	ETH_MDI2_N
  7	D3N	ETH_MDI3_P
  8	D3P	ETH_MDI3_N
