Pulse

The Aerium Pulse is a compact, high-voltage power module for Pixhawk-based unmanned platforms. Supporting 3S–14S LiPo (8–60 V) systems, Pulse delivers clean, regulated 5 V / 3 A power for your autopilot and peripherals, while providing integrated analog voltage & current sensing for accurate real-time telemetry. Designed for reliability under demanding conditions, it offers flexible integration with both screw power terminals and solder pads for space-constrained builds.

General

• Wide input range: 3S–14S LiPo (8–60 V)
• On-board 5 V / 3 A buck regulator for FC + peripherals
• Integrated analog voltage & current sensing for telemetry
• Flexible integration: screw power terminals or solder pads
• Optional solder pour to expand current capacity
• Built for demanding unmanned platforms power architectures

Mechanical

• Dimensions: 26 × 23 mm
• Weight: ~19 g

Electrical

Specifications

• Input voltage: 8–60 V (3S–14S LiPo)
• Regulated output: 5 V / 3 A
• Current handling: up to 60 A (system/power path)

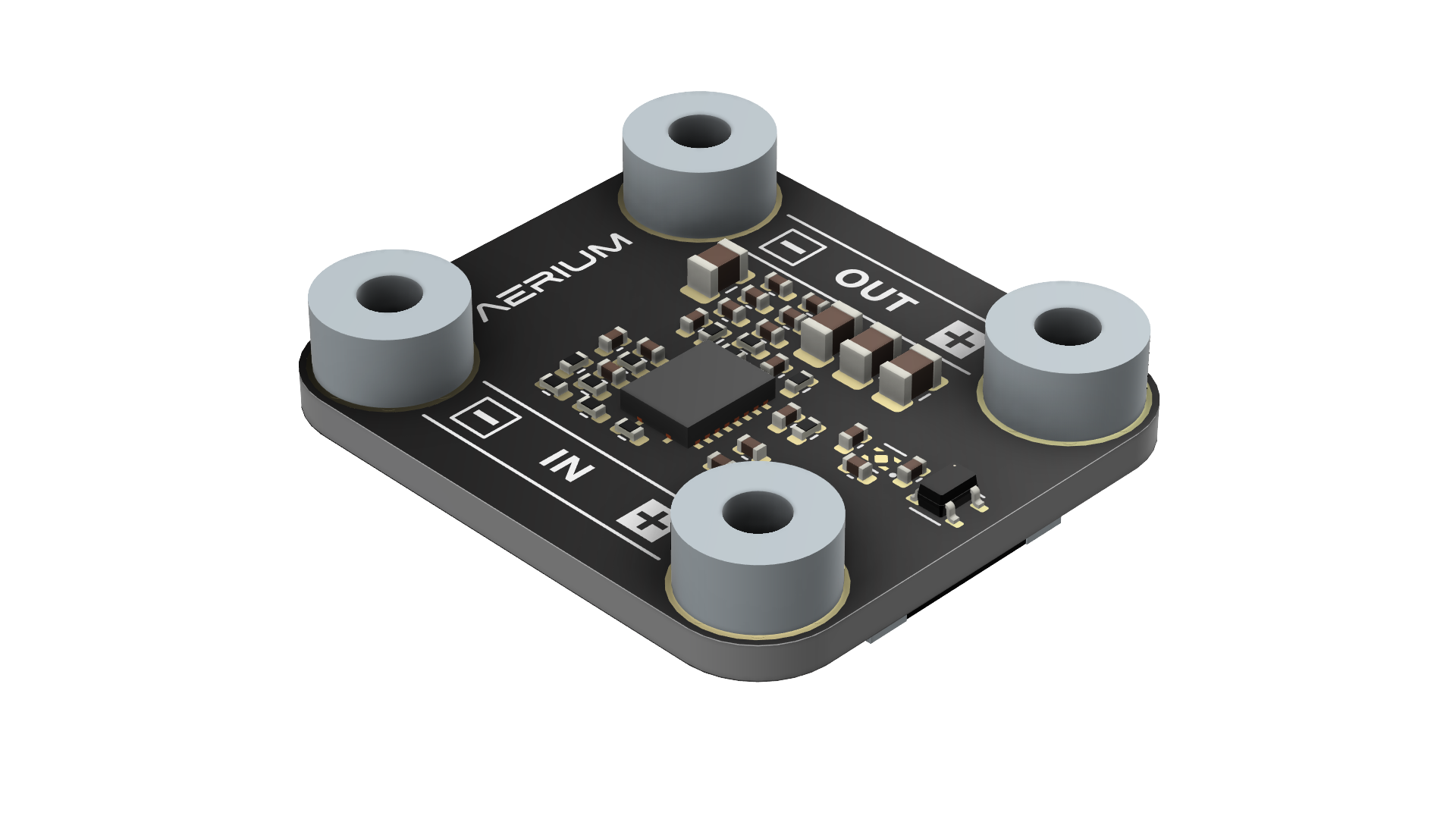

  • Top View
  • Bottom View

Electrical pinout

• Connector orientation
  • JST-GH cables shall be oriented according to the illustration

POWER1

• Connector Definition

  Type	Part Number	Part Name
  Board Connector	SM06B-GHS-TB	JST-GH
  Cable Connector	GHR-06V-S	JST-GH

• Connector Pinout

  Pin	Name
  1	5V
  2	5V
  3	Current sense (logic 3.3v)
  4	Voltage sense (logic 3.3v)
  5	GND
  6	GND

Software

Parameters

Parameter	Value
Voltage Multipier	31.0
Ampers Per Volt	33.33
