Dupont Servo Adapter

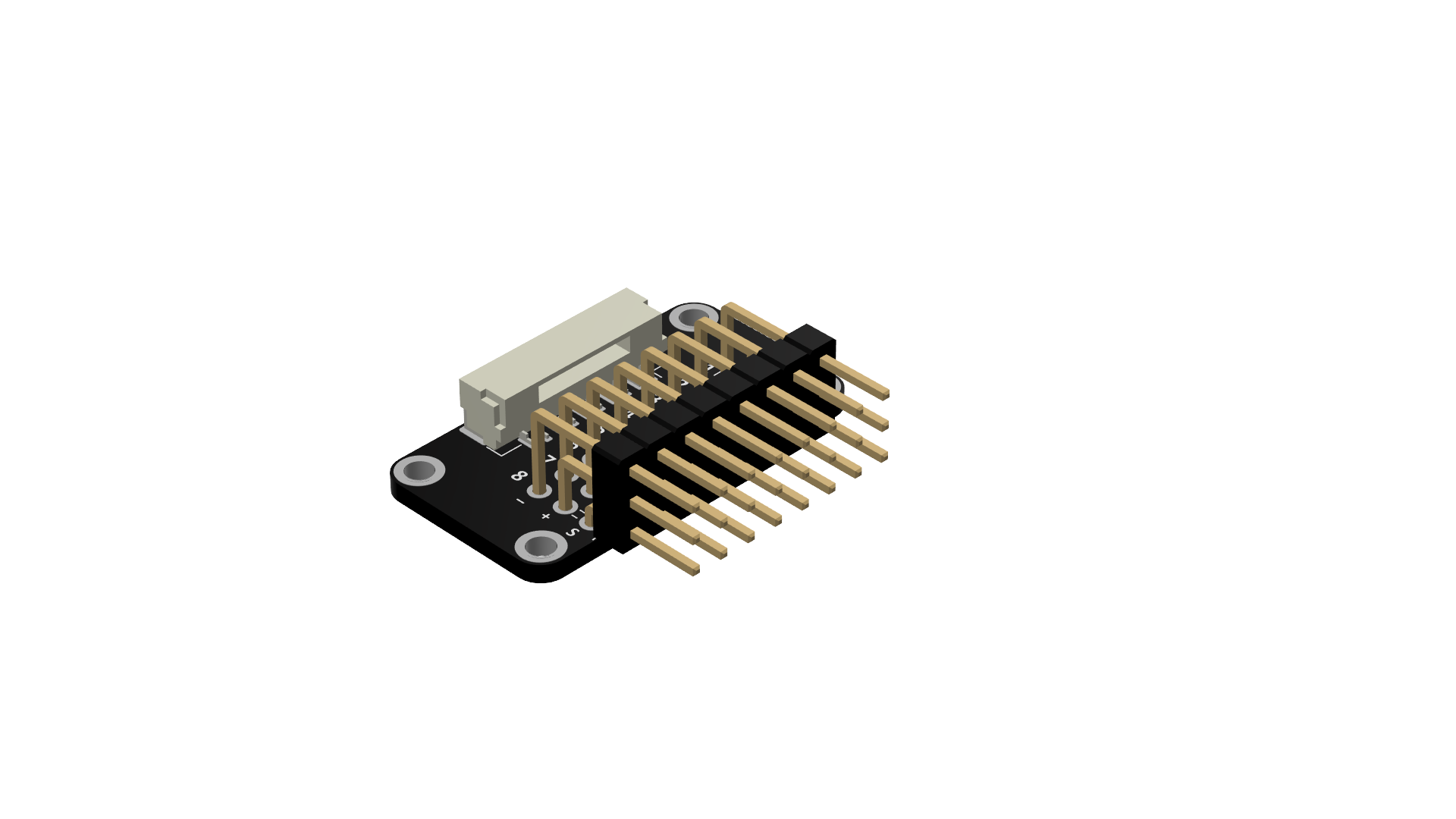

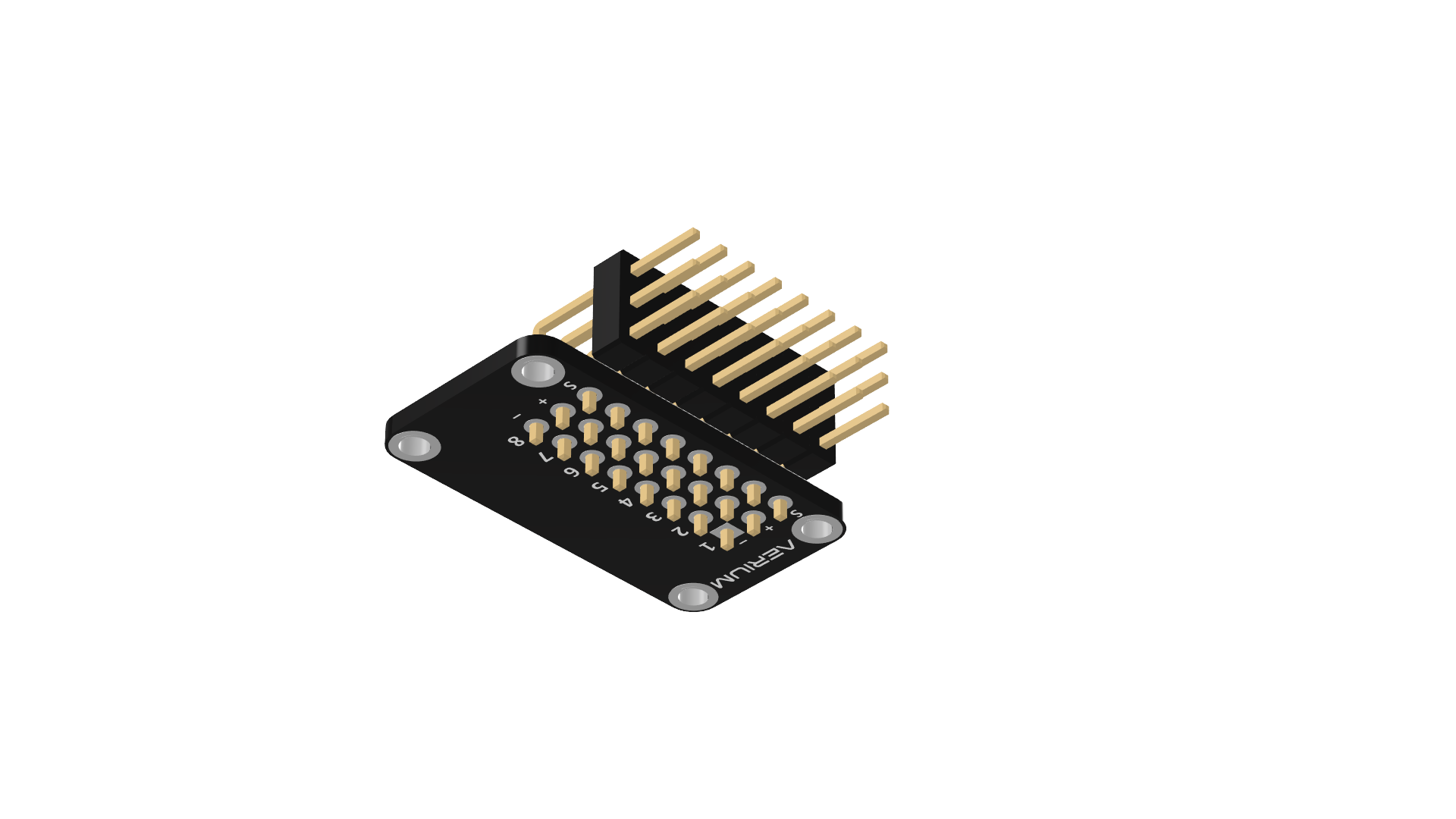

Description

Resources

• 3D CAD Model

Pinout

• Connector Definition

  Type	Part Number	Part Name
  Board Connector	SM10B-GHS-TBT	JST-GH
  Cable Connector	GHR-10V-S	JST-GH

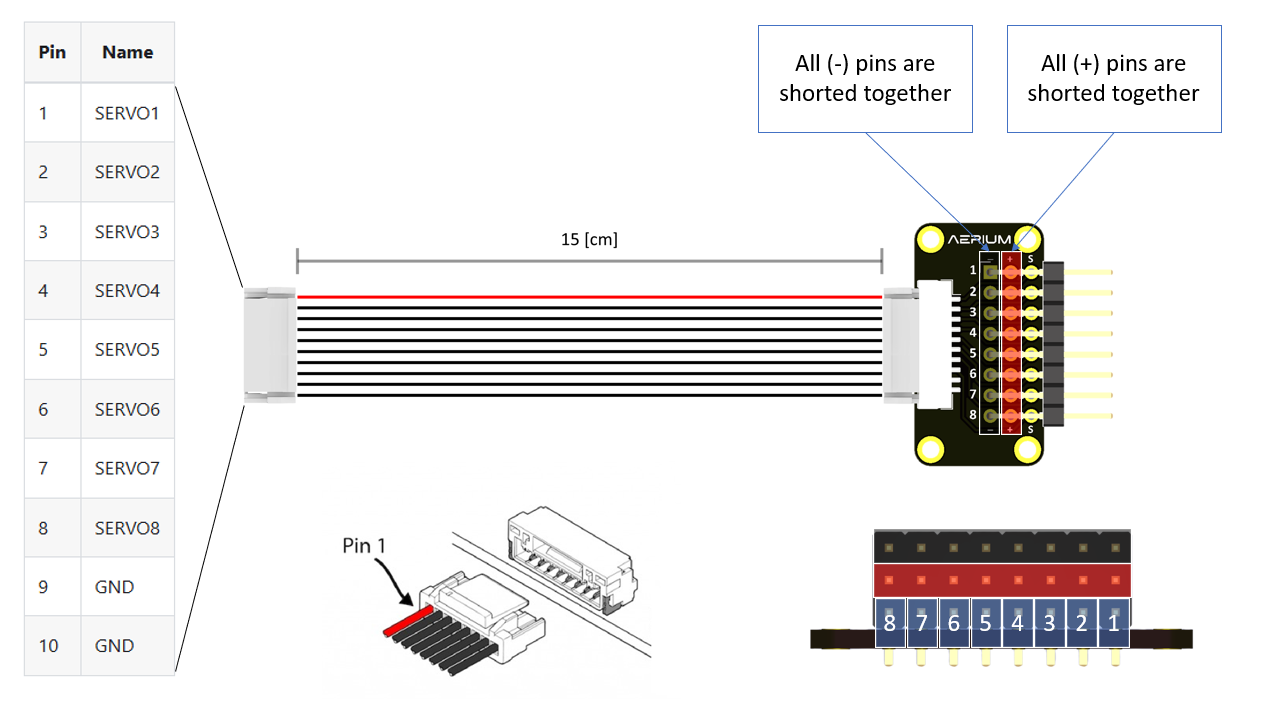

• Connector Pinout

  Pin	Name
  1	PWM1
  2	PWM2
  3	PWM3
  4	PWM4
  5	PWM5
  6	PWM6
  7	PWM7
  8	PWM8
  9	GND
  10	GND
