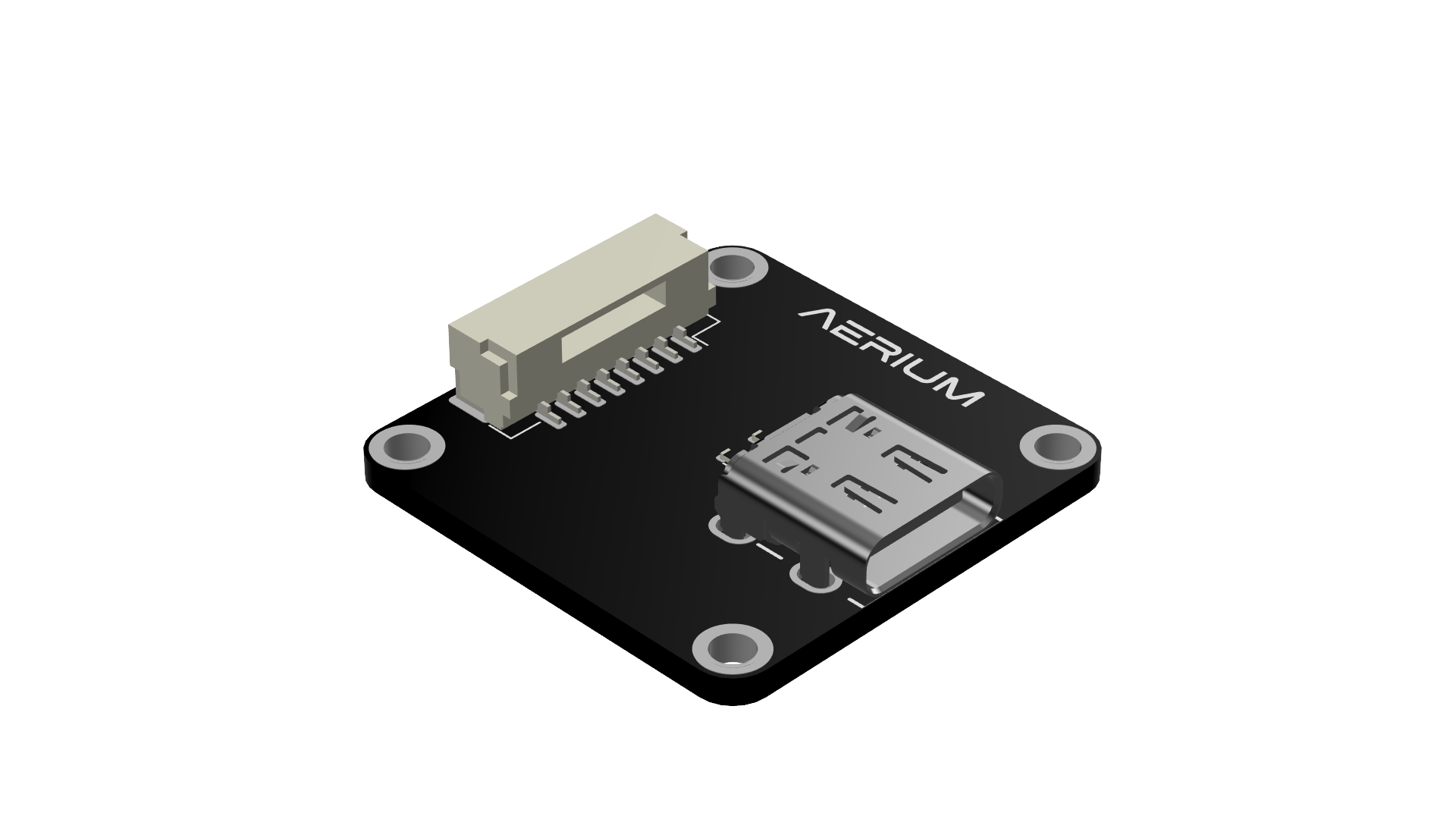

USB3 Type-C Adapter

Description

Resources

• 3D CAD Model

Pinout

• Connector Definition

  Type	Part Number	Part Name
  Board Connector	SM04B-GHS-TB	JST-GH
  Cable Connector	GHR-04V-S	JST-GH

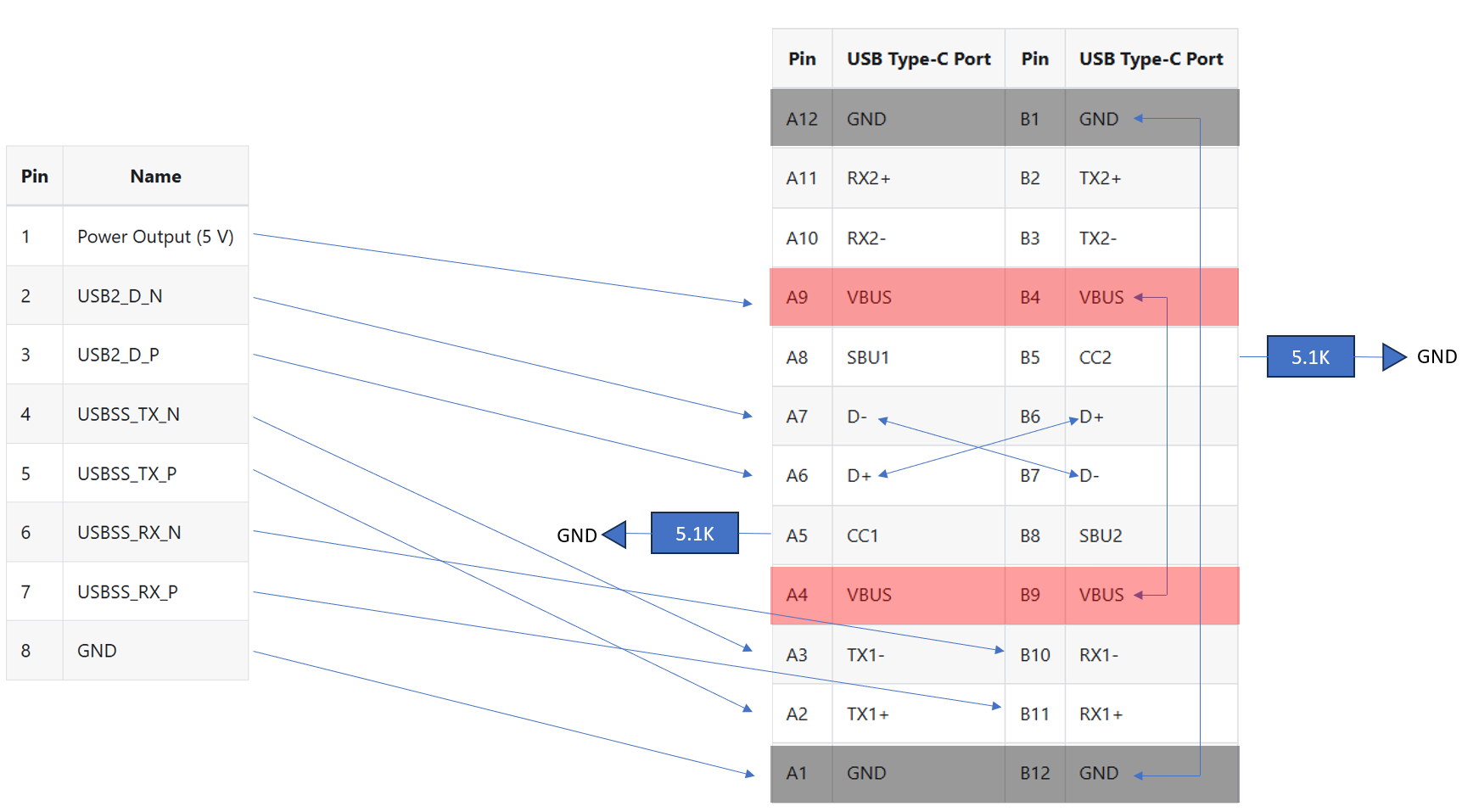

• Connector Pinout
