USB2 Type-C Adapter

USB2 Type-C Adapter USB2 Type-C Adapter

Description​

Resources​

Pinout​

GH-4P

  • Connector Definition

    TypePart NumberPart Name
    Board ConnectorSM04B-GHS-TBJST-GH
    Cable ConnectorGHR-04V-SJST-GH

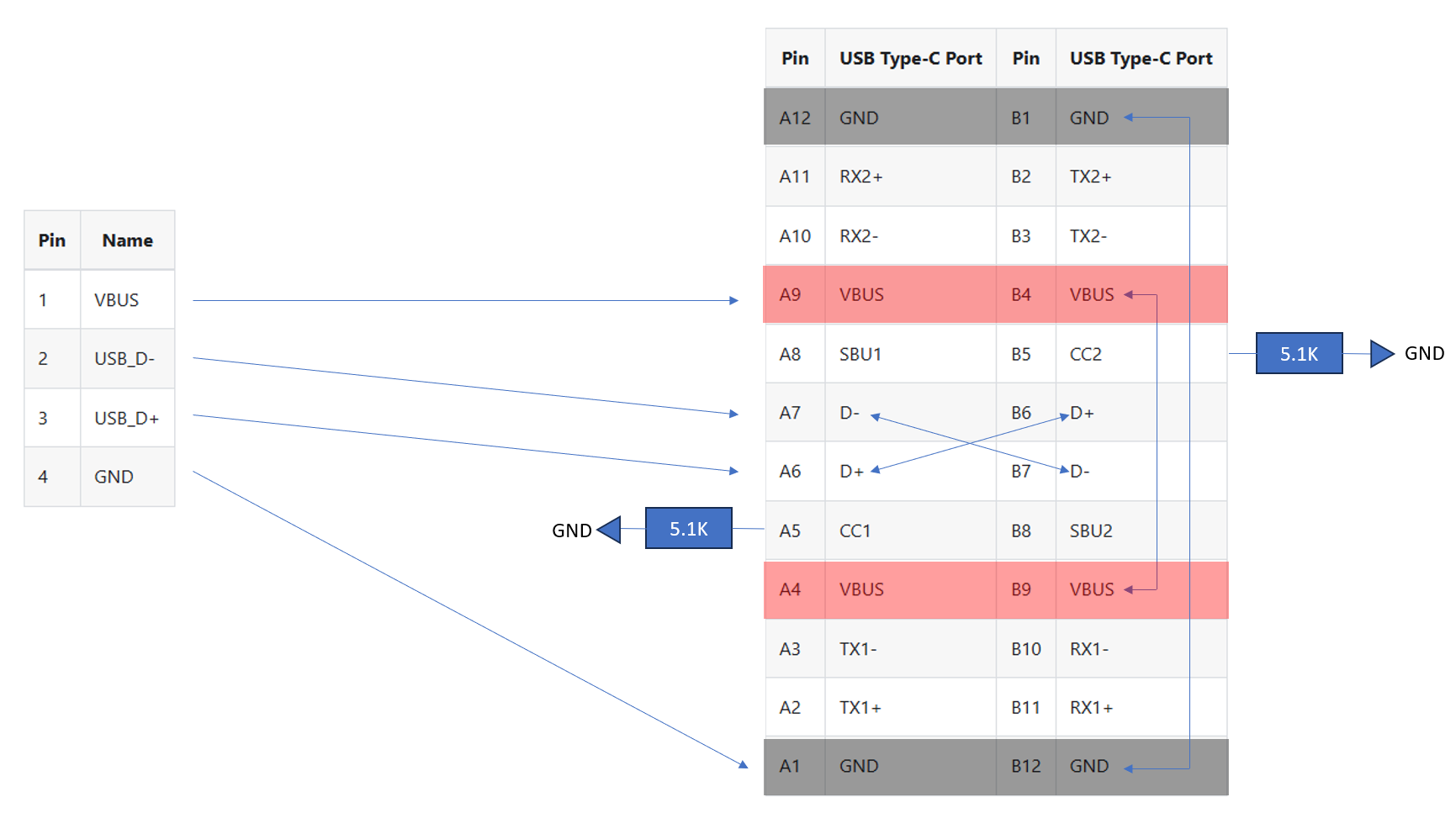

  • Connector Pinout

Diagram
